Channels 16 | Drives/bays 2 | Desktop/pedestal | Rack | CPU Industrial-grade processor | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 1xRS232 | 1xUSB 2.0 | 1xUSB 3.0 | 1xRJ45 | 1xRS-485 | 4xAlarm In | 2xAlarm Out | Power supply requirements 100–240 VAC, 47-63 Hz | Dim. 375.0 mm × 329.3 mm x 53.0mm
Description | 16 IP channel max, up to 32MP resolution
Max 384 Mbps incoming Bandwidth
VGA/HDMI up to 4K output, 16-channel 4 MP@30 fps
2 SATA interface up to 16TB, Gigabit LAN
PoE Port: 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE; 130W max total
No front panel controls, 4/2 alarm I/O, 1/1 Audio I/O, RS232, RS485, 2 USB
1U 19” chassis, mouse included
AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, and people counting.
Other brands IP cameras supported. ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
Free IP monitoring software available
|
Страница производителя | www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/2HDD/NVR5216-16P-EI |

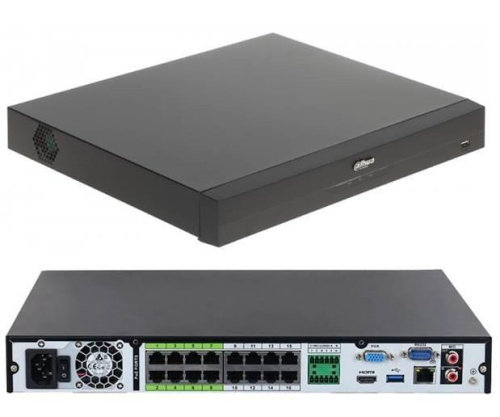

Модель | NVR5216-16P-EI |
Количество каналов | 16 |
Количество дисков/отсеков | 2 |
Десктоп-/башенный тип | Yes |
Стойка (Rack) | Yes |
Центральный процессор (CPU) | Industrial-grade processor |
15-контактный разъем D-sub | 1 |
Входные порты | 4 |
Выходные порты | 2 |
Аудио-вход | 1 |
Аудио-выход | 1 |
HDMI | 1 |
RJ45 | 1 |
RS232 | 1 |
РС-485 | 1 |
USB 2.0 | 1 |
USB 3.0 | 1 |
PoE порты | 16 |
Требование к блоку/адаптеру питания | 100–240 VAC, 47-63 Hz |
Размер (физические параметры) | 375.0 mm × 329.3 mm x 53.0mm |
Вес | 2.66 kg |
Вес брутто | 3.95 kg |
Ширина коробки блока | 0.15 |
Длина коробки блока | 0.45 |
Высота коробки блока | 0.42 |
Полное подробное описание | Channels 16|Drives/bays 2|Desktop/pedestal|Rack|CPU Industrial-grade processor|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRS232|1xUSB 2.0|1xUSB 3.0|1xRJ45|1xRS-485|4xAlarm In|2xAlarm Out|Power supply requirements 100–240 VAC, 47-63 Hz|Dim. 375.0 mm × 329.3 mm x 53.0mm |
Код категории | NVR |
