Channels 4 | Drives/bays 1 | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 53 VDC, 1.226 A | Power consumption 36 Watts | Dim. 260 mm × 232.7 mm × 47.6 mm | Temp. range –10 °C to +55 °C
Description | - 4 IP channel max, up to 16MP resolution
- Max: 80Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 1 SATA III port, up to 16 TB for a single HDD
- PoE 4 ports, 10/100 Mbps, IEEE 802.3 af/at, total 36W max
- No front panel control, no alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
- Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported
|
Страница производителя | www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4104HS-P-EI |

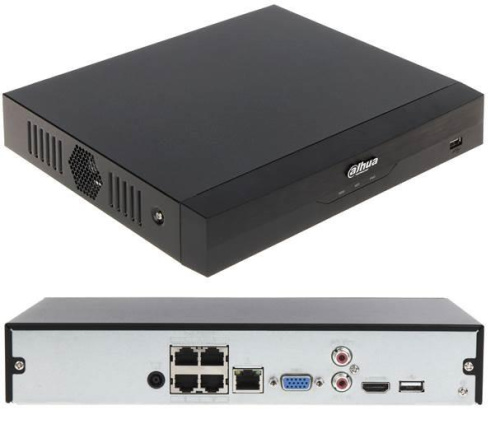

Модель | NVR4104HS-P-EI |
Количество каналов | 4 |
Количество дисков/отсеков | 1 |
15-контактный разъем D-sub | 1 |
Аудио-вход | 1 |
Аудио-выход | 1 |
HDMI | 1 |
RJ45 | 1 |
USB 2.0 | 2 |
PoE порты | 4 |
Требование к блоку/адаптеру питания | 53 VDC, 1.226 A |
Энергопотребление | 36 Watts |
Размер (физические параметры) | 260 mm × 232.7 mm × 47.6 mm |
Диапазон рабчоих температур | –10 °C to +55 °C |
Вес | 0.86 kg |
Вес брутто | 1.36 kg |
Ширина коробки блока | 0.115 |
Длина коробки блока | 0.37 |
Высота коробки блока | 0.305 |
Полное подробное описание | Channels 4|Drives/bays 1|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 53 VDC, 1.226 A|Power consumption 36 Watts|Dim. 260 mm × 232.7 mm × 47.6 mm|Temp. range –10 °C to +55 °C |
Код категории | NVR |
