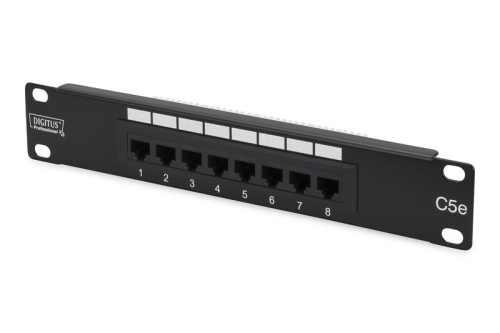

8-port patch panel for 10 "(254 mm) rack mounting from DIGITUS
Suitable for AWG 22-26 (wire / wire) wires;
Made of cold rolled steel sheet (SECC) 1.5 mm thick according to EN1.4301, UNS S30400, AISI 304 and LMSAD110;
Contact material: phosphor bronze;
Plug coats: nickel, gold 0.3;
IDC Terminal Material: Phosphor Bronze 50 m zinc per 60 nickel;
PCB material: FR4, UL 94V-0, coating thickness 1.45 mm;
Durability: 750 (ISO / IEC 11801, IEC 60603-7-5);
Operating temperature: -20 ° C ... + 70 ° C;
Insulation resistance> 500MOhm;
