Case Type 1U rack | Socket LGA1700 | CPU Model Number E-2414 | Clock speed 2600 MHz | Installed CPUs 1 | Maximum number of CPUs 1 | 6x2.5" SAS/SATA Hot-swap | SSD 1 | Memory 16 GB | Memory configuration 1 | Memory type DDR5 | Memory features UDIMM/ECC | Memory slots 4 | RAID PERC H355 Adapter, Low Profile | NIC On-Board LOM | PSU Hot-swap | PSU model code Titanium PSU Configuration ONLY FOR 200-240Vac | PSU Output Power 700 Watts | Installed PSUs 1 | Server management iDRAC9, Basic (16GEN) | Included Accessories 1U/2U Static Rails for 2-Post and 4-Post Racks

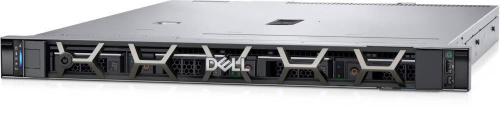

Description | PowerEdge R260 Server
Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM
Intel Xeon E-2414 2.6GHz, 12M Cache, 4C/4T, Turbo HT (55W), DDR5
PERC H355 Adapter, Low Profile
Chassis with up to 6x2.5" SAS/SATA Hot Plug Hard Drives
1x 16GB UDIMM, 5600MT/s, ECC
1x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive
PSU Hot Plug Single 700W MM HLAC (ONLY FOR 200-240Vac), Titanium
iDRAC9, Basic (16GEN)
Riser Config 1, Gen4
TPM 2.0 V3
3Yr Basic Next Business Day Warranty
Accessories:
1U Standard Bezel
1U/2U Static Rails for 2-Post and 4-Post Racks
1x Power Cord C13 to C14, PDU Style, 10 AMP, 4m
Factory Settings:
Performance Optimized
Power Saving BIOS Settings
UEFI BIOS Boot Mode with GPT Partition
|
Страница производителя | chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://www.delltechnologies.com/asset/en-us/products/servers/technical-support/poweredge-r260-technical-guide.pdf |
Модель | PowerEdge R260 |
Тип корпуса | 1U rack |
Сокет | LGA1700 |
Номер модели процессора | E-2414 |
Тактовая частота процессора | 2600 MHz |
Установленные процессоры | 1 |
Максимальное количество процессоров | 1 |
2.5" SAS/SATA с поддержкой «горячей замены» | 6 |
SSD объем | 480GB |
Конфигурация SSD | 1 |
Память | 16 GB |
Конфигурация памяти | 1 |
Тип памяти | DDR5 |
Тип модуля памяти | ECC/UDIMM |
Слоты под память | 4 |
RAID | PERC H355 Adapter, Low Profile |
NIC-порт | On-Board LOM |
Блок питания | Hot-swap |
Код модели блока питания | Titanium PSU Configuration ONLY FOR 200-240Vac |
Мощность блока питания | 700 Watts |
Установленные блоки питания | 1 |
Максимальное количество блоков питания | 1 |
Управление сервером | iDRAC9, Basic (16GEN) |
Аксессуары идущие в комплекте | 1U/2U Static Rails for 2-Post and 4-Post Racks |
Вес | 11 kg |
Вес брутто | 15.6 kg |
CnCode | 84715000 |
Ширина коробки блока | 0.24 |
Длина коробки блока | 0.78 |
Высота коробки блока | 0.6 |
Полное подробное описание | Case Type 1U rack|Socket LGA1700|CPU Model Number E-2414|Clock speed 2600 MHz|Installed CPUs 1|Maximum number of CPUs 1|6x2.5" SAS/SATA Hot-swap|SSD 1|Memory 16 GB|Memory configuration 1|Memory type DDR5|Memory features UDIMM/ECC|Memory slots 4|RAID PERC H355 Adapter, Low Profile|NIC On-Board LOM|PSU Hot-swap|PSU model code Titanium PSU Configuration ONLY FOR 200-240Vac|PSU Output Power 700 Watts|Installed PSUs 1|Server management iDRAC9, Basic (16GEN)|Included Accessories 1U/2U Static Rails for 2-Post and 4-Post Racks |
Код категории | SER |
