Desktop/pedestal | 5x10Base-T / 100Base-TX / 1000Base-T | PoE+ ports 5 | Switching capacity 10 Gbps | Forwarding rate 7.44 Mpps | Dimensions 158 × 101 × 25 mm | Unit Net Weight 0.3 kg

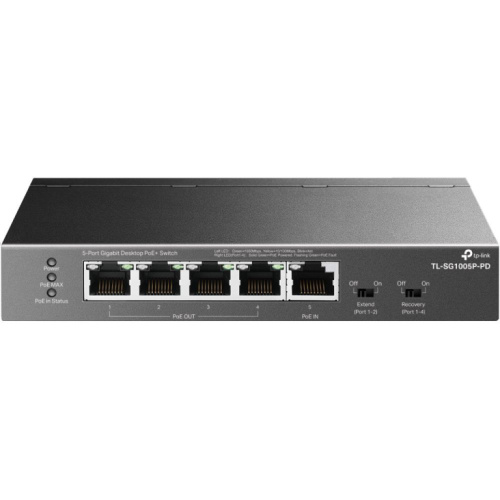

Description | 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out
Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.
Long-Range PoE+: With Extend Mode, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply. |
Страница производителя | www.tp-link.com/au/business-networking/unmanaged-switch/tl-sg1005p-pd/ |
Название модели | TL-SG1005P-PD |
Десктоп-/башенный тип | Yes |
Количество основных портов | 5 |
10Base-T / 100Base-TX / 1000Base-T | 5 |
PoE+ порты | 5 |
Коммутационная способность | 10 Gbps |
Скорость пересылки | 7.44 Mpps |
Размер (физические параметры) | 158 × 101 × 25 mm |
Вес | 0.3 kg |
Вес брутто | 0.5 kg |
Ширина коробки блока | 0.13 |
Длина коробки блока | 0.195 |
Высота коробки блока | 0.05 |
Полное подробное описание | Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 5|Switching capacity 10 Gbps|Forwarding rate 7.44 Mpps|Dimensions 158 × 101 × 25 mm|Unit Net Weight 0.3 kg |
Код категории | SWI |
