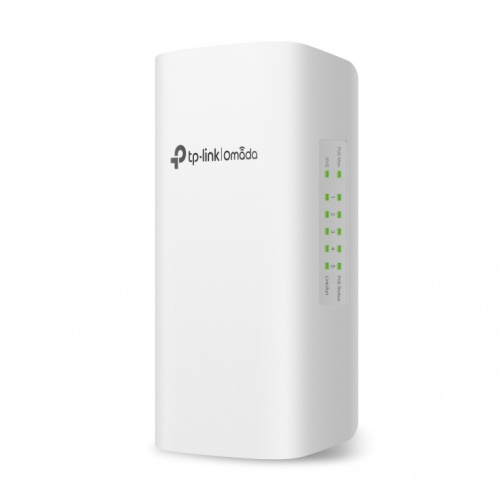

SG2005P-PD Omada Smart Switch, 5 gigabit ports, including 1 PoE++ IN port and 4 PoE+ OUT ports
- Up to 200 m of PoE transmission: The PoE Passthrough standard allows you to increase the PoE transmission range (source to device) from 100 m to a maximum of 200 m (up to 100 m to the switch + up to 100 meters from the switch), without losing gigabit speeds. This is ideal for remote surveillance cameras and access points.
- 1 Gigabit PoE++ IN port and 4 PoE+ OUT ports: Supports up to 64 W / 44 W / 19 W / 6 W of PoE output during power supply - according to the 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W) standard respectively , 802.3at and 802.3af PoE
- Weather resistance: IP55 tightness class and UV-resistant housing. Permissible temperature ranging from -40 to 60 °C and 4kV lightning protection ensures stable operation even in difficult conditions outside the building.
- Easy installation: Placing the device on a wall or pole is hassle-free thanks to the included mounting kit.
- Centralized Cloud Management: Integration with Omada SDN enables cloud access, remote management, and multi-site management.
- Features that add value and capabilities: Static Routing, Access Control List (ACL), QoS and VLAN.
PoE powered PoE switch:
- Simple network deployment outside the building
- Omada Smart gigabit switch
- 1 PoE++ IN port
- 4 PoE+ OUT ports
- Power supply via PoE++/PoE+/PoE
- Total PoE power supply 64 W on 4 PoE+ output ports
- Doubling the PoE range to 200m without losing gigabit speeds
- Gigabit ports
- Easy installation - Pole/wall mounting
- Water and UV radiation resistant housing
- Centralized management of multiple sites
- Static routing
The PoE Passthrough standard allows you to increase the PoE transmission range to a maximum of 200m, without losing gigabit speeds.
Eliminate network restrictions and transmit data and power over a single cable, simplifying installation and reducing implementation costs. Increase the PoE transmission range (source to device) from 100m to a maximum of 200m without losing gigabit speeds. This is an ideal solution for remote surveillance cameras and access points.

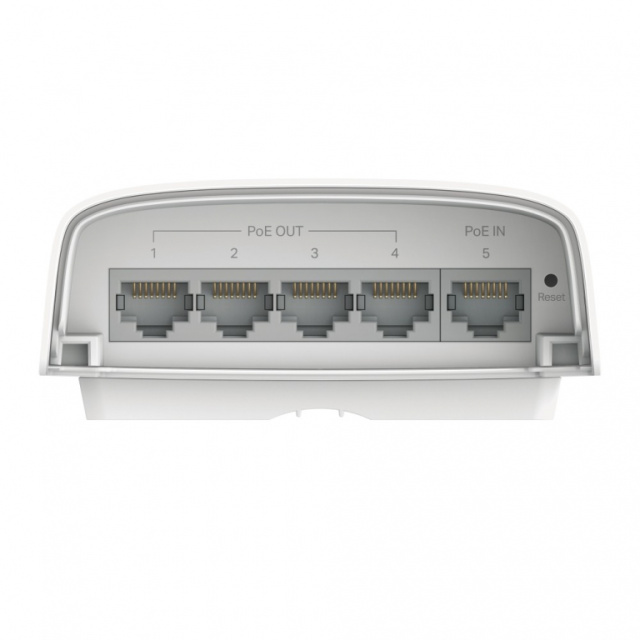

1 Gigabit PoE++ IN port
4 Gigabit PoE+ OUT ports
Supports up to 64W / 44W / 19W / 6W PoE output when powered - 802.3bt Type 4 (90W), 802.3bt Type 3 (60W), 802.3at and 802.3af PoE respectively. The PoE-PD switch automatically detects the required PoE power of your devices and protects non-PoE devices from damage.

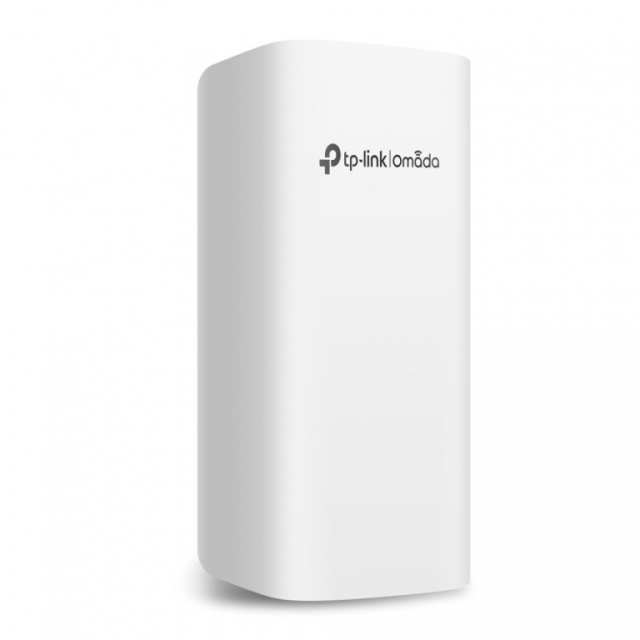

Weather-resistant housing designed for outdoor use
The IP55 enclosure rating, assessed through penetration testing, ensures that the rugged and weather-resistant enclosure will protect the switch from harsh outdoor environments.

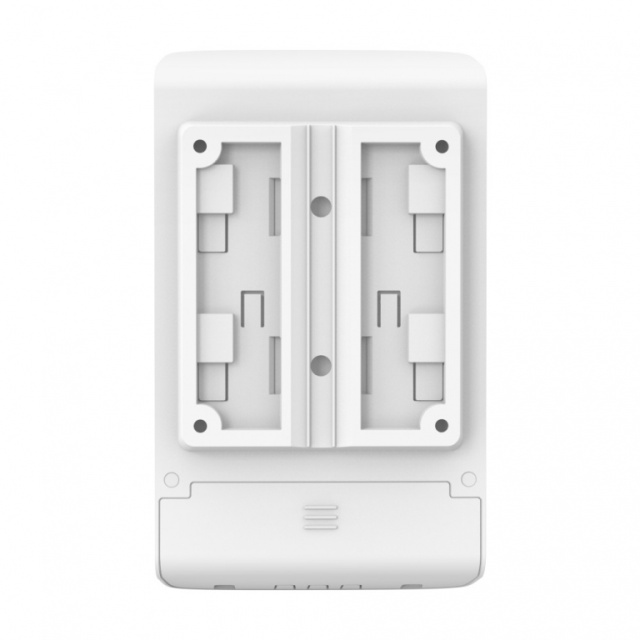

Easy assembly, tailored to your needs
The compact design of the switch allows for easy and flexible installation, for example on an external junction box.
The set includes elements for mounting on a wall or pole.
Additional features that add value and capabilities
- Static Routing - Helps direct internal traffic for more efficient use of network resources.
- Access Control List (ACL) - ACL acts as a virtual administrator, allowing all connected devices to obtain data according to user-defined network rules and helps you create the network regulations you need.
- QoS - Prioritize traffic based on QoS, ensuring smooth operation of latency-sensitive applications such as voice and video calls.
- VLAN Secure and flexible management - VLAN allows you to logically group the management of devices on different physical LANs, increasing data security and reducing data traffic congestion.
Software control of network infrastructure (SDN) with access from the cloud
Omada's software-defined network (SDN) platform integrates the operation of network devices, including access points, switches and gateways, providing comprehensive central management from the cloud. Omada enables you to create a highly scalable network - fully controlled via a single interface.
