RB5009UG+S+IN | Network Device Type Router | 1x2.5GbE | 1xSFP+ | 7x1GbE | 1xUSB 3.0 | Memory (RAM) 1GB | Flash memory capacity 1GB | Power supply requirements DC jack, PoE-IN, 2-pin terminal | Power consumption 20 Watts | Operating temperature range -40°C to +60°C | Dimensions 220 x 21.5 x 125 mm

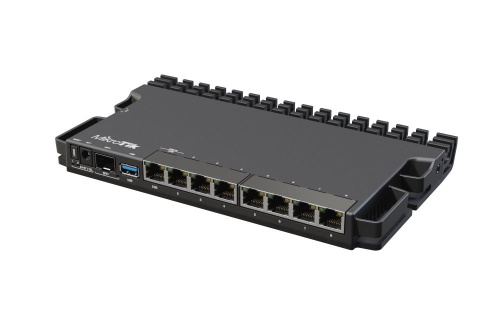

Description | RB5009UG+S+IN
The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! |
Страница производителя | mikrotik.com/product/rb5009ug_s_in |
Код модели | RB5009UG+S+IN |
Тип сетевого устройства | Router |
1GbE | 7 |
2,5 Гбит/с | 1 |
СФП + | 1 |
USB 3.0 | 1 |
Память (RAM) | 1GB |
Объём Флэш-память | 1GB |
Требование к блоку/адаптеру питания | DC jack, PoE-IN, 2-pin terminal |
Энергопотребление | 20 Watts |
Диапазон рабчоих температур | -40°C to +60°C |
Размер (физические параметры) | 220 x 21.5 x 125 mm |
Вес | 0.6 kg |
Вес брутто | 0.78 kg |
Ширина коробки блока | 0.13 |
Длина коробки блока | 0.31 |
Высота коробки блока | 0.05 |
Полное подробное описание | RB5009UG+S+IN|Network Device Type Router|1x2.5GbE|1xSFP+|7x1GbE|1xUSB 3.0|Memory (RAM) 1GB|Flash memory capacity 1GB|Power supply requirements DC jack, PoE-IN, 2-pin terminal|Power consumption 20 Watts|Operating temperature range -40°C to +60°C|Dimensions 220 x 21.5 x 125 mm |
Код категории | ROU |
