KNOT // RB924i-2nD-BT5&BG77 | Network Device Type Gateway | 2x10Base-T / 100Base-TX | 1xUSB 2.0 | Memory (RAM) 16MB | Power supply requirements PoE-IN, DC jack, MicroUSB | Power consumption 5 Watts | Operating temperature range -40°C to 70°C | Dimensions 122 x 87 x 26 mm
| Description | KNOT

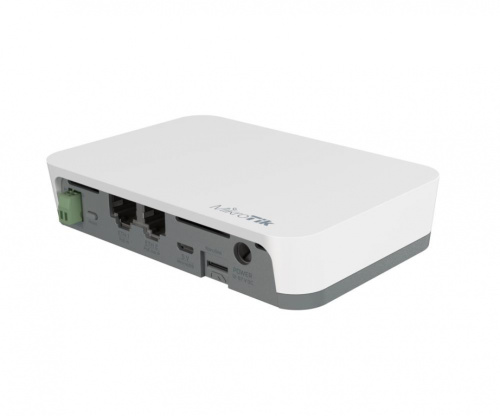

IoT Gateway for the most versatile and cost-effective setups
The newest addition to the MikroTik IoT product family – KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.
KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.
You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!
KNOT features so many protocol support and connectivity options:
2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost! |
| Страница производителя | mikrotik.com/product/knot#fndtn-gallery |
| Код модели | KNOT // RB924i-2nD-BT5&BG77 |
| Тип сетевого устройства | Gateway |
| 10Base-T / 100Base-TX | 2 |
| USB 2.0 | 1 |
| Память (RAM) | 16MB |
| Требование к блоку/адаптеру питания | PoE-IN, DC jack, MicroUSB |
| Энергопотребление | 5 Watts |
| Диапазон рабчоих температур | -40°C to 70°C |
| Размер (физические параметры) | 122 x 87 x 26 mm |
| Вес | 0.35 kg |
| Вес брутто | 0.44 kg |
| CnCode | 85176200 |
| Ширина коробки блока | 0.11 |
| Длина коробки блока | 0.235 |
| Высота коробки блока | 0.05 |
| Полное подробное описание | KNOT // RB924i-2nD-BT5&BG77|Network Device Type Gateway|2x10Base-T / 100Base-TX|1xUSB 2.0|Memory (RAM) 16MB|Power supply requirements PoE-IN, DC jack, MicroUSB|Power consumption 5 Watts|Operating temperature range -40°C to 70°C|Dimensions 122 x 87 x 26 mm |
| Код категории | ROU |
