Omada | EAP230-WALL | Type Wireless Access Point | Data transmission speed 1167 Mbps | IEEE 802.11ac | 1x10/100/1000M | Wireless Frequency Range 2.4 / 5 GHz | Power supply requirements 802.3af/802.3at PoE, 7W | Dimensions 86.8 × 86.8 × 30.2 mm
Description | TP-LINK EAP230-Wall

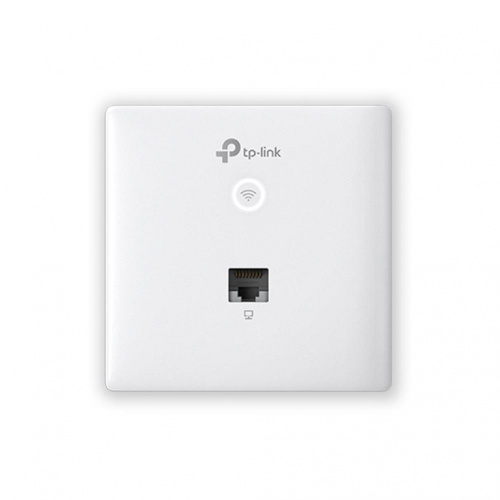

Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
+ Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
+ Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
+ Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
+ Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
+ Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
+ Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
+ Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
+ Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies. |
Страница производителя | www.tp-link.com/ae/business-networking/wall-plate-ap/eap230-wall/ |
Series | Omada |
Название модели | EAP230-WALL |
Тип сетевого устройства | Wireless Access Point |
Скорость передачи данных | 1167 Mbps |
IEEE 802.11ac | Yes |
10/100/1000М | 1 |
Частота беспроводной связи | 2.4 / 5 GHz |
Требование к блоку/адаптеру питания | 802.3af/802.3at PoE, 7W |
Размер (физические параметры) | 86.8 × 86.8 × 30.2 mm |
Вес | 0.16 kg |
Вес брутто | 0.24 kg |
CnCode | 85176200 |
Ширина коробки блока | 0.12 |
Длина коробки блока | 0.13 |
Высота коробки блока | 0.05 |
Полное подробное описание | Omada|EAP230-WALL|Type Wireless Access Point|Data transmission speed 1167 Mbps|IEEE 802.11ac|1x10/100/1000M|Wireless Frequency Range 2.4 / 5 GHz|Power supply requirements 802.3af/802.3at PoE, 7W|Dimensions 86.8 × 86.8 × 30.2 mm |
Код категории | WAP |
