Type Fixed/HDTV/Megapixel/Outdoor | Video interface HDCVI | Sensor size 1/2.7" | Focal Length 2.8mm | Lens Mount M12 | Electronic Shutter Speed PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s | Power supply requirements 12V ±30% DC | Dimensions 161.3mm×69.7mm×70.0mm
Description | 1/2.7" CMOS, 2880 × 1620 @ 25FPS max
Minimum Illumination: 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
IR Distance: up to 30m
2.8 mm lens, angle of view: 111°
True Day / Night with ICR Filter, BLC / HLC / DWDR / 2D DNR
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Bullet design (plastic), IP67, outdoor/indoor use, -40°C~+60°C
Power 12 VDC, 3.7W max |
Vendor Homepage | www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Starlight/HAC-HFW1500C(-A) |

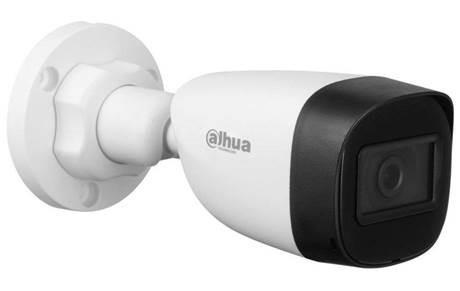

Camera design | Bullet |
Network Camera Type | Fixed/HDTV/Megapixel/Outdoor |
Video interface | HDCVI |
Pixel Resolution | 5 Mega Pixel |
Net camera resolution | 5 - 7MP |
Sensor size | 1/2.7" |
Focal length | 2.8 - 3.5mm |
Lens Mount | M12 |
IR Illumination | Yes |
Electronic Shutter Speed | PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s |
Power Options | 12V |
Power supply requirements | 12V ±30% DC |
Power consumption | 3.7 Watts |
Environment | Outdoor |
Dimensions | 161.3mm×69.7mm×70.0mm |
Unit Net Weight | 0.19 kg |
Unit Gross Weight | 0.28 kg |
Unit Box Width | 0.095 |
Unit Box Length | 0.185 |
Unit Box Height | 0.08 |
Full Description Line | Type Fixed/HDTV/Megapixel/Outdoor|Video interface HDCVI|Sensor size 1/2.7"|Focal Length 2.8mm|Lens Mount M12|Electronic Shutter Speed PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s|Power supply requirements 12V ±30% DC|Dimensions 161.3mm×69.7mm×70.0mm |
Category Code | HSC |
