Services | |

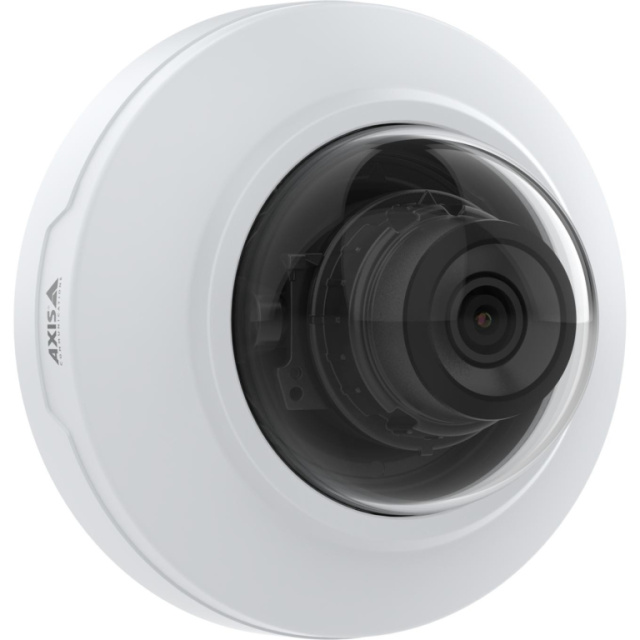

Type | IP-Sicherheitskamera |
Unterstützte Positionierung | Drinnen |
transmission technology | Kabelgebunden |
Eigenschaft | Betriebsanleitung |
PTZ-Modi | Digitale PTZ |
number of languages | 19 |
certification | CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
Design | |
form factor | Dome |
attachment type | Decke/Wand |
Product color | Weiß |
housing material | Aluminium, Polycarbonat (PC) |
International degree of protection (IP code) | IP42 |
IK-Kodex | IK08 |
Camera | |
minimum lighting | 0,24 Lux |
rotation angle | 105° |
viewing angle (horizontal) | 93 - 47° |
viewing angle (vertical) | 50 - 26° |
tilt angle range | -40 - 65° |
swivel range | -180 - 180° |
camera shutter speed | 1/71500 - 1/5 s |
image sensor | |
Image sensor size | 25,4 / 2,8 mm (1 / 2.8") |
Sensor-Typ | CMOS |
lens | |
Maximum f-number | 2,6 |
Minimum f-number | 1,7 |
Video | |
Maximum resolution | 3840 x 2160 Pixel |
total megapixels | 8 MP |
Video compression formats | H.264, H.265, M-JPEG |
Up to 30 frames per second | 15 fps |
noise canceling technology | 2D-Rauschunterdrückung, 3D-Rauschunterdrückung |
network | |
Ethernet interfaces type | Schnelles Ethernet |
mesh standard | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
storage medium | |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Flash memory | 512 MB |
storage capacity | 2048 MB |
connections and interfaces | |
Number of Ethernet LAN ports (RJ-45) | 1 |
Number of HDMI ports | 1 |
safety | |
energy | |
energy source | PoE |
Power consumption (max.) | 4,8 W |
Power Consumption (Power over Ethernet (PoE)) | 3 W |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -30 - 65 °C |
Operating relative humidity | 10 - 85% |
humidity during storage | 5 - 95% |
weight and dimensions | |
height | 71 mm |
diameter | 12 cm |
Weight | 356 g |
scope of delivery | |
number of cameras | 1 |
