Services | |
Type | IP-Sicherheitskamera |
Unterstützte Positionierung | Innen & Außen |
transmission technology | Kabelgebunden |
Eigenschaft | Nachhaltigkeitskonformität |
Design | |

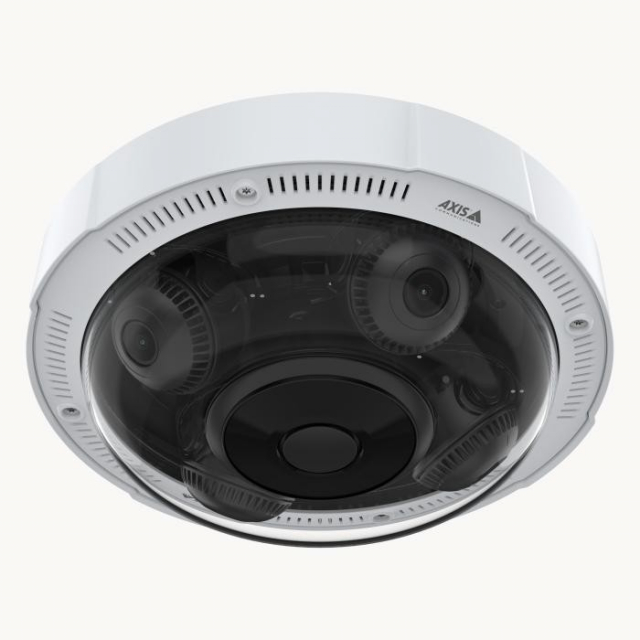

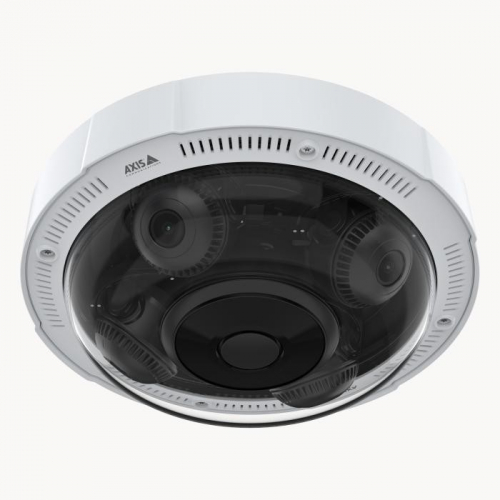

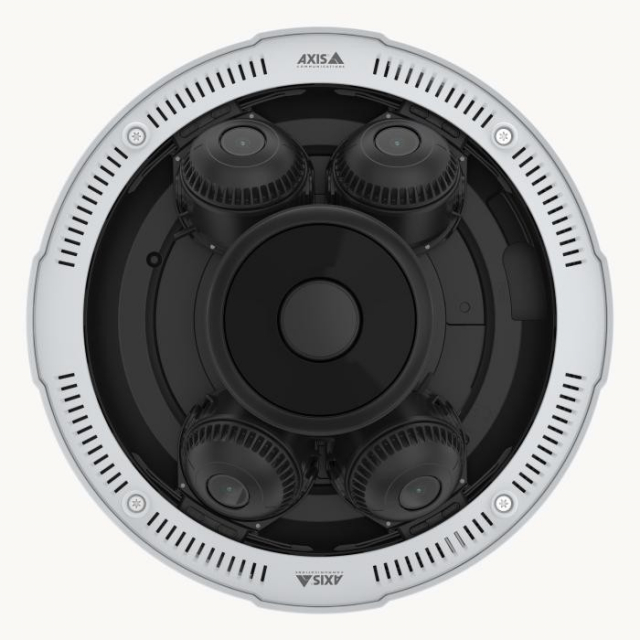

form factor | Dome |

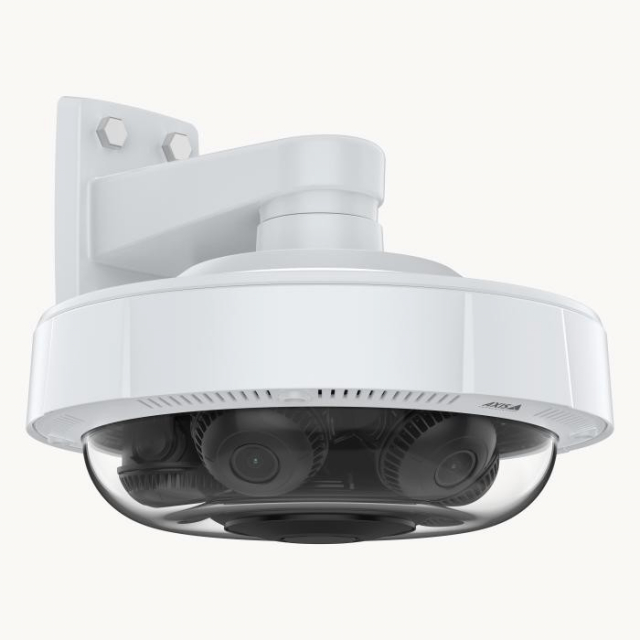

attachment type | Zimmerdecke |
Product color | Weiß |
International degree of protection (IP code) | IP66, IP67 |
IK-Kodex | IK09 |
Camera | |
rotation angle | 100° |
viewing angle (horizontal) | 108 - 40° |
viewing angle (vertical) | 55 - 23° |
Lens viewing angle, diagonal | 131 - 46° |
tilt angle range | 25 - 95° |
swivel range | -90 - 90° |
Pixelgröße Kamera | 1,45 µm |
image sensor | |
number of sensors | 4 |
Image sensor size | 25,4 / 2,8 mm (1 / 2.8") |
Sensor-Typ | CMOS |
Panoramakamera | |
Maximale Auflösung (Panoramakamera) | 3840 x 2160 Pixel |
Brennweitenbereich (Panoramakamera) | 3.2 - 8.1 mm |
lens | |
number of lenses | 4 |
night vision | |
LED Type | IR |
Video | |
Maximum resolution | 3840 x 2160 Pixel |
Supported video formats | H.264, H.265, M-JPEG |
Up to 30 frames per second | 15 fps |
network | |
Ethernet interfaces type | Gigabit Ethernet |
mesh standard | IEEE 802.1x |
storage medium | |
Flash memory | 8192 MB |
storage capacity | 4096 MB |
connections and interfaces | |
Number of Ethernet LAN ports (RJ-45) | 1 |
safety | |
energy | |
energy source | PoE |
operating conditions | |
operating temperatur | -30 - 50 °C |
Storage temperature range | -40 - 65 °C |
weight and dimensions | |
Weight | 2 kg |
scope of delivery | |
number of cameras | 1 |
Technical details | |
sustainability certificates | UL ECOLOGO |
Konformitätsbescheinigungen | CE, EAC, KC, RoHS, UKCA, VCCI, cUL |
