Video | |
Maximum video resolution | 1920 x 1080 Pixel |
Maximum Frame Rate | 30 fps |
Video compression formats | AVC, H.264, H.265, HEVC, MPEG4 |
NTSC Auflösung | 720x480 Pixel |
PAL Auflösung | 720x576 Pixel |
number of channels | 4 Kanäle |
Services | |
storage capacity | 1024 MB |
Flash memory | 512 MB |
Eigenschaft | Betriebsanleitung |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Bildeinstellungen | Helligkeit, Color, Kompression, Kontrast, Spiegeln, Datenschutzmaske, Rotation, Schärfe |
Design | |
Product color | Grau |
LED indicators | Status |
network | |
Copper Ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
mesh standard | IEEE 802.3af, IEEE 802.3at |
safety | |
Supported security algorithms | HTTPS |
connections and interfaces | |
BNC Eingänge | 4 |

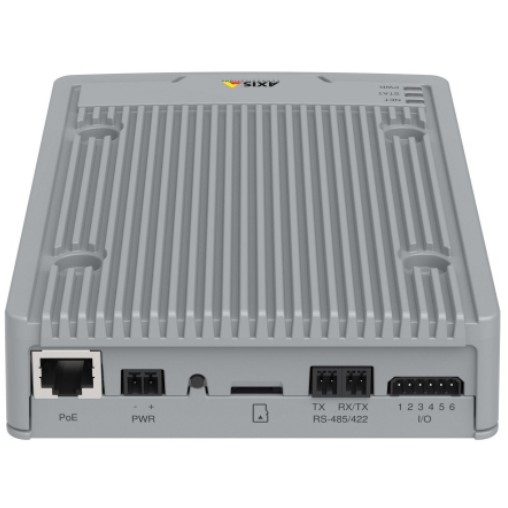

Number of Ethernet LAN ports (RJ-45) | 1 |
RS-485-Anschlüsse | 2 |
I/O-Terminalanschlüsse | 1 |
energy | |
Power consumption (standard operation) | 8,2 W |
weight and dimensions | |
broad | 187 mm |
height | 37 mm |
Weight | 650 g |
scope of delivery | |
operating conditions | |
operating temperatur | 0 - 50 °C |
Storage temperature range | -40 - 65 °C |
Operating relative humidity | 10 - 85% |
