International Protection (IP) code | IP67 |

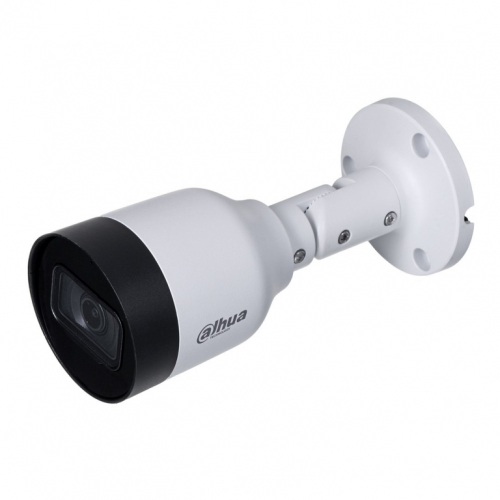

Form factor | Bullet |
Product colour | White |

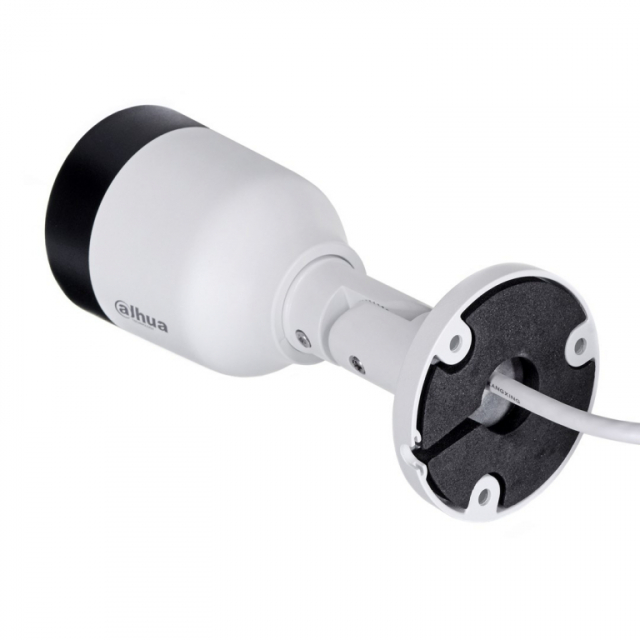

Mounting Type | Ceiling/wall |
Housing material | Metal |
DC output voltage | 12 |
Power consumption (max) | 4.5 W |
Power consumption (typical) | 2.3 W |
Power source type | DC |
Video motion detection | Yes |
Security algorithms | HTTPS |
Mirror | Yes |
Operating temperature (T-T) | -40 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -40 - 60 °C |
Web browser | Yes |
Management software | Smart PSS; DSS; DMSS |
Depth | 70.1 mm |
Width | 162.1 mm |
Weight | 320 g |
Height | 70.1 mm |
Wi-Fi | No |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
Networking standards | IEEE 802.1x |
Bluetooth | No |
Mobile operating systems supported | Android |
Connectivity Technology | Wired |
Type | IP security camera |
Day/night mode | Yes |
Placement supported | Indoor & outdoor |
Wide Dynamic Range (WDR) | Yes |
Number of Cameras | 1 |
Signal-to-Noise Ratio (SNR) | 56 dB |
Built-in microphone | Yes |
Built-in HDD | No |
ROM capacity | 16 MB |
INTERNAL MEMORY | 128 MB |
Ethernet LAN (RJ-45) ports | 1 |
Adjustment shutter speed | Auto/Manual |
Angle of rotation | 360° |
Camera shutter type | Electronic |
Camera shutter speed | 1/3 s–1/100,000 |
Pan range | 0 - 360° |
Minimum illumination | 0.03 lx |
Tilt angle range | 0 - 90° |
Field of view (FOV) angle | 106° |
Lens viewing angle, vertical | 56° |
White balance | Natural |
Lens viewing angle, diagonal | 125° |
Lens viewing angle, horizontal | 106° |
Progressive Scan | Yes |
Number of effective pixels (H x V) | 2880 x 1620 pixels |
Number of sensors | 1 |
Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Sensor type | CMOS |
Effective Sensor Resolution | 2 pixels |
Maximum Resolution | 2880 x 1620 pixels |
Noise reduction | Yes |
Supported graphics resolutions | 2688 x 1520 |
Digital Wide Dynamic Range (DWDR) | Yes |
Total megapixels | 5 MP |
Gain control type | Auto/Manual |
Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Video streaming | Yes |
Video compression formats | H.264 |
Back Light Compensation (BLC) | Yes |
Frame rate | 20 fps |
Highlight Compensation (HLC) | Yes |
Privacy masking | Yes |
Region of Interest (ROI) encoding | Yes |
Video recording | Yes |
Noise reduction technology | 3D noise reduction |
Video formats supported | H.264 |
Smart IR | Yes |
Number of illumination LEDs | 1 |
Night vision distance | 30 m |
LED type | IR |
Night Vision | Yes |
Recognize distance | 11.2 m |
Focal length range | 2.8 mm |
Detect distance | 56 m |
Observe distance | 22.4 m |
Maximum aperture number | 2 |
Number of lenses | 2 |
Closest focusing distance | 0.8 m |
Identify distance | 5.6 m |
Minimum illumination (panoramic camera) | 0.003 lx |
Signal-to-Noise Ratio (SNR) (panoramic camera) | 56 dB |
