Product colour | Black |
Form factor | Dome |
International Protection (IP) code | IP66 |
LED indicators | Yes |
I code | IK08 |
Mounting Type | Ceiling/wall |
Power consumption (typical) | 4 W |
Power consumption (max) | 13 W |
Power source type | DC, PoE |
Alarm input channels | 1 |
Alarm output channels | 1 |
Intelligent Video Surveillance (IVS) system features | Missing object |
Video motion detection | Yes |
Operating relative humidity (H-H) | 0 - 95% |
Operating temperature (T-T) | -30 - 60 °C |
Web-based management | Yes |
Management software | DMSS; DSS Pro |
Weight | 500 g |
Height | 65.7 mm |
Diameter | 12.8 cm |
Ethernet LAN | Yes |
Bluetooth | No |
Wi-Fi | No |
Number of users | 20 user(s) |
Mobile operating systems supported | iOS |
Certification | CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035
CE-LVD: EN 62368-1
FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 |
Connectivity Technology | Wired |

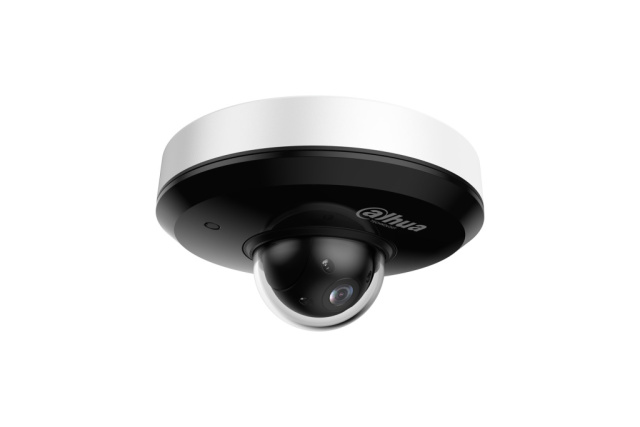

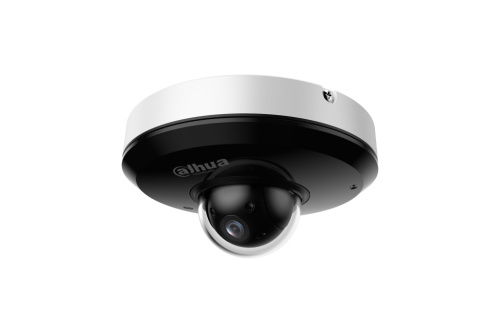

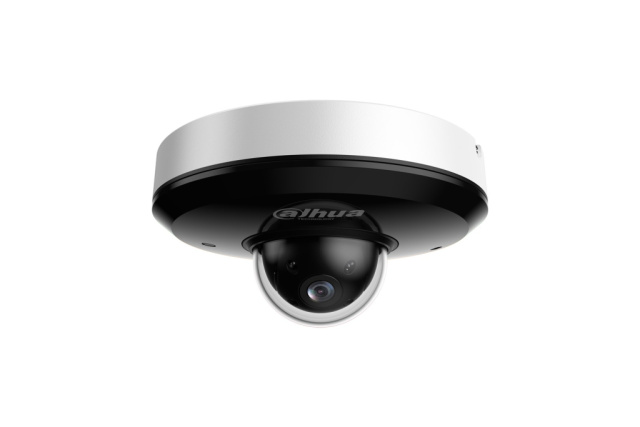

Type | IP security camera |
PTZ modes | 8 Tour |
PTZ control | Yes |
Wide Dynamic Range (WDR) | Yes |
PTZ protocols | DH-SD |
Placement supported | Indoor & outdoor |
Alarm input/output | Yes |
Preset points | Yes |
PACKAGE WEIGHT | 700 g |
Number of Cameras | 1 |
Audio output channels | 1.0 channels |
Audio input channels | 1.0 channels |
Audio detection | Yes |
COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
Card reader integrated | Yes |
Built-in HDD | No |
Maximum memory card size | 512 GB |
ROM capacity | 256 MB |
RAM Capacity | 512 MB |
Ethernet LAN (RJ-45) ports | 1 |
Tilt angle range | 5 - 90° |
Camera shutter speed | 1 - 1/30000 s |
White balance | Indoor |
Minimum illumination | 0.0005 lx |
Pan range | 0 - 355° |
Tilt preset speed | 0.1 °/sec |
Camera shutter type | Electronic |
Pan preset speed | 0.1 °/sec |
Camera tilt control | Yes |
Camera pan control | Yes |
Pan manual speed | 0.1 - 70 °/sec |
Tilt manual speed | 0.1 - 30 °/sec |
Optical sensor size | 25.4 / 28 mm (1 / 28") |
Progressive Scan | Yes |
Sensor type | CMOS |
Supported graphics resolutions | 1280 x 720 (HD 720) |
Maximum Resolution | 2560 x 1440 pixels |
Highlight Compensation (HLC) | Yes |
Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Frame rate | 30 fps |
Back Light Compensation (BLC) | Yes |
Noise reduction | Yes |
Total megapixels | 4 MP |
Region of Interest (ROI) encoding | Yes |
Video streaming | Yes |
Noise reduction technology | 2D noise reduction, 3D noise reduction |
Video compression formats | M-JPEG |
Image stabilizer | Yes |
Gain control type | Auto/Manual |
LED type | IR |
Night vision distance | 20 m |
Infra-red LEDs life | 3 h |
Night Vision | Yes |
Optical zoom | 4x |
Digital zoom | 16x |
Focal length range | 2.8 - 12 mm |
Detect distance (wide) | 240 m |
Minimum aperture number | 1.8 |
Maximum aperture number | 2.7 |
Identify distance (wide) | 24 m |
Observe distance (wide) | 94.8 m |
Auto focus | Yes |
Number of lenses | 1 |
Focus | Motorized/Manual |
Recognize distance (wide) | 48 m |
Closest focusing distance | 0.2 m |
Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
