| Product colour | Black |
| Form factor | Turret |
| I code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting Type | Ceiling |
| Power source type | DC, PoE |
| Power consumption (typical) | 13 W |
| Power consumption (max) | 22 W |
| DC output current | 2.5 A |
| DC output voltage | 24 |
| Alarm output channels | 1 |
| Alarm input channels | 2 |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Web-based management | Yes |
| Web browser | Yes |
| Weight | 4.7 kg |
| Height | 332 mm |
| Diameter | 19 cm |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Connectivity Technology | Wired |
| PTZ modes | 5 Pattern |
| PTZ control | Yes |

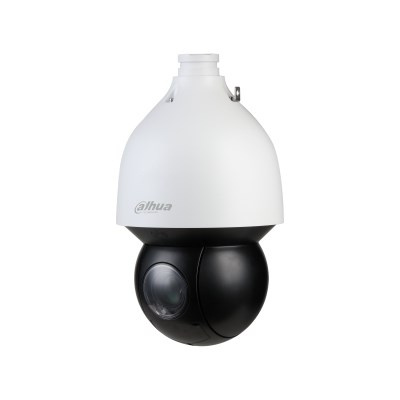

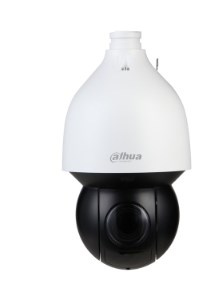

| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Day/night mode | Yes |
| Auto-tracking | Yes |
| Alarm input/output | Yes |
| PACKAGE WEIGHT | 8 kg |
| Number of Cameras | 1 |
| Audio formats supported | G.722.1 |
| Audio input channels | 1.0 channels |
| Audio system full duplex | Yes |
| Maximum memory card size | 512 GB |
| INTERNAL MEMORY | 1000 MB |
| Built-in HDD | No |
| COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
| ROM capacity | 4000 MB |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Tilt angle range | 15 - 90° |
| Minimum illumination | 0.0005 lx |
| Pan range | 0 - 360° |
| Pan preset speed | 400 °/sec |
| White balance | Outdoor |
| Tilt preset speed | 300 °/sec |
| Lens viewing angle, horizontal | 58.5–2.8 |
| Pan manual speed | 0.1 - 300 °/sec |
| Lens viewing angle, diagonal | 67.5–3.2 |
| Lens viewing angle, vertical | 33.2-1.5° |
| Tilt manual speed | 0.1 - 200 °/sec |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum Resolution | 1920 x 1080 pixels |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| Back Light Compensation (BLC) | Yes |
| Noise reduction | Yes |
| Video compression formats | H.265 |
| Number of illumination LEDs | 4 |
| LED type | IR |
| Night Vision | Yes |
| Minimum aperture number | 1.6 |
| Digital zoom | 16x |
| Optical zoom | 25x |
| Focus | Manual |
| Focal length range | 4.8–120 |
| Zoom capability | Yes |
| Maximum aperture number | 3.5 |
| Recognize distance | 323 m |
| Number of lenses | 1 |
| Observe distance | 646 m |
| Auto focus | Yes |
| Closest focusing distance | 0.1 m |
| Detect distance | 1614 m |
| Identify distance | 161 m |
| Warnings | The product contains electronic components; do not dispose of with the normal household waste. |
