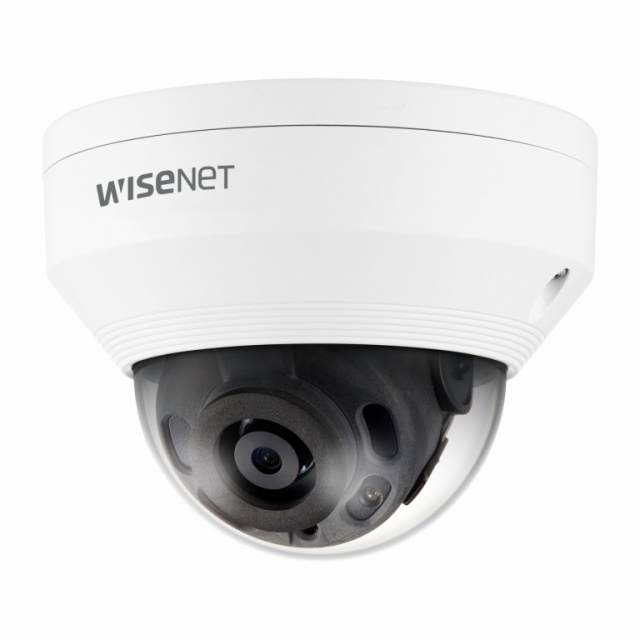

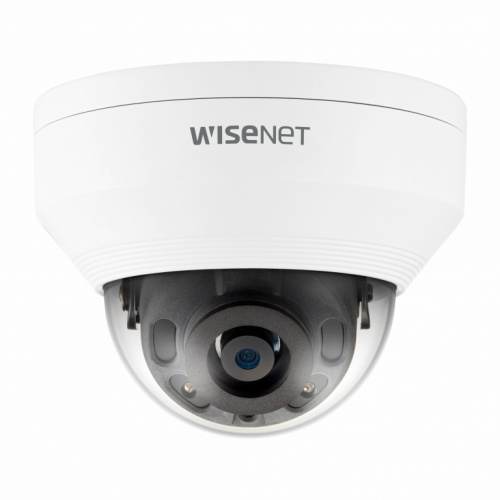

Hanwha Techwin IP-Cam Fixed Dome "Q-Serie" QNV-7022R 4MP

Hanwha Techwin IP-Cam Fixed Dome
  • Hanwha Techwin IP-Cam Fixed Dome
€ 413.00
-+
Add to cart
  • Without TAX: € 338.52
  • Brand:Hanwha - Wisenet Model:QNV-7022R Availability:Pre-order 4-8 W. Days Quantity:8 pcs.
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Services
Type IP-Sicherheitskamera
Unterstützte Positionierung Draußen
transmission technology Kabelgebunden
Eigenschaft Betriebsanleitung
number of languages 17
Design
form factor Dome
attachment type Zimmerdecke
Product color Weiß
housing material Aluminium
International degree of protection (IP code) IP66
IK-Kodex IK10
Camera
minimum lighting 0 Lux
rotation angle 350°
viewing angle (horizontal) 78.2°
viewing angle (vertical) 41.2°
Lens viewing angle, diagonal 92°
tilt angle range 0 - 67°
swivel range 0 - 350°
white balance ATW, AWC, Drinnen, Manuell, Draußen
Verschlusstyp Elektronisch
camera shutter speed 1/5 - 1/12000 s
image sensor
number of sensors 1
Image sensor size 25,4 / 3 mm (1 / 3")
Sensor-Typ CMOS
lens
number of lenses 1
distance determination 63 m
Abstandsbeobachtung 25,2 m
Abstandserkennung 12,6 m
Maximum f-number 1,6
Abstandsermittlung 6,3 m
Fixed focal length 4 mm
night vision
night vision distance 25 m
LED Type IR
Video
Maximum resolution 2560 x 1440 Pixel
total megapixels 4 MP
Supported video formats H.264, H.265, M-JPEG
Video compression formats H.264, H.265, M-JPEG
Up to 30 frames per second 30 fps
Bitratenkontrolle Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Audio
Supported audio formats ADPCM, G.711, G.726
Samplerate 8 kHz
voice codec G.711ulaw, G.726, G.726-32
network
Ethernet interfaces type Schnelles Ethernet
mesh standard IEEE 802.3af
number of users 6 Benutzer
streaming method Multicasting, Unicast
storage medium
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Max memory card size 128 GB
Flash memory 256 MB
storage capacity 512 MB
connections and interfaces
Number of Ethernet LAN ports (RJ-45) 1
Composite video output 1
safety
Password protection type Benutzer
Supported security algorithms EAP-LEAP, EAP-TLS, HTTPS, LEAP
alert notification type E-Mail
Intelligent Video Surveillance (IVS) system properties Defokussieren
energy
energy source Gleichstrom, PoE
Power consumption (standard operation) 6,5 W
Power consumption (max.) 10,7 W
Power Consumption (Power over Ethernet (PoE)) 8,1 W
DC output volts 12
operating conditions
operating temperatur -40 - 55 °C
Storage temperature range -40 - 60 °C
Operating relative humidity 0 - 95%
humidity during storage 0 - 95%
weight and dimensions
height 91,7 mm
diameter 12 cm
Weight 510 g
