International Protection (IP) code | IP67 |
Housing material | Metal |
Form factor | Bullet |
Mounting Type | Ceiling/wall |
Product colour | White |
DC output voltage | 12 |
Power source type | DC, PoE |
Power consumption (max) | 6.5 W |
Power consumption (Power over Ethernet (PoE)) | 8 W |
Intelligent Video Surveillance (IVS) system features | Scene change |
IP address filtering | Yes |
HTTPS encryption | Yes |
Video motion detection | Yes |
Anti-flicker | Yes |
Heartbeat | Yes |
Mirror | Yes |
PASSWORD PROTECTION | Yes |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -30 - 60 °C |
Operating temperature (T-T) | -30 - 60 °C |
Behavior analysis | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
PACKAGE WEIGHT | 810 g |
Depth | 73.3 mm |
Package height | 117 mm |
Width | 72.9 mm |
Package width | 234 mm |
Weight | 595 g |
Package depth | 120 mm |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.1x |
Quality of Service (QoS) support | Yes |
Wi-Fi | No |
Number of users | 32 user(s) |
Ethernet LAN | Yes |
Bluetooth | No |
Day/night mode | Yes |
Number of languages | 33 |

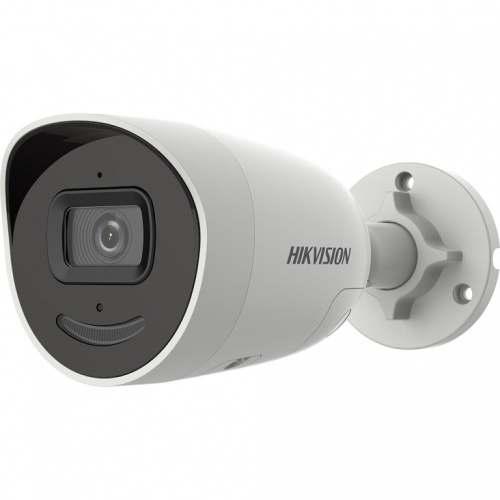

Type | IP security camera |
Placement supported | Outdoor |
Wide Dynamic Range (WDR) | Yes |
Connectivity Technology | Wired |
Infrared (IR) cut-off filter | Yes |
Number of Cameras | 1 |
Voice Codecs | AAC |
Sample Rate | 48 kHz |
Built-in microphone | Yes |
Audio formats supported | MP3 |
Built-in speaker(s) | Yes |
COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
Built-in HDD | No |
Card reader integrated | Yes |
Maximum memory card size | 256 GB |
Ethernet LAN (RJ-45) ports | 1 |
Camera shutter speed | 1/3 - 1/100000 s |
Pan range | 0 - 360° |
Camera pan control | Yes |
Lens viewing angle, horizontal | 110° |
Camera tilt control | Yes |
Angle of rotation | 360° |
Lens viewing angle, vertical | 57° |
Tilt angle range | 0 - 90° |
Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
Sensor type | CMOS |
Progressive Scan | Yes |
Number of sensors | 1 |
Video compression formats | H.265 |
Supported graphics resolutions | 2688 x 1520 |
Video streaming | Yes |
Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Region of Interest (ROI) encoding | Yes |
Total megapixels | 8 MP |
Noise reduction | Yes |
Frame rate | 30 fps |
Noise reduction technology | 3D noise reduction |
Privacy masking | Yes |
Bit rate | 32 Kbps - 16 Mbps |
Highlight Compensation (HLC) | Yes |
Maximum Resolution | 3840 x 2160 pixels |
Back Light Compensation (BLC) | Yes |
Image quality adjustment | Contrast |
Infra-red wavelength | 850 nm |
Night vision distance | 40 m |
LED type | IR |
Night Vision | Yes |
Maximum aperture number | 1.6 |
Fixed focal length | 2.8 mm |
Identify distance (wide) | 9 m |
Recognize distance (wide) | 18 m |
Number of lenses | 1 |
