| Protection features | Vandal proof |
| Housing material | Aluminium |
| I code | IK10 |
| Mounting Type | Ceiling/wall |
| International Protection (IP) code | IP67 |
| Form factor | Dome |
| Product colour | White |
| Power consumption (max) | 7.2 W |
| DC output voltage | 12 |
| DC output current | 0.6 A |
| Power consumption (Power over Ethernet (PoE)) | 8.5 W |
| Power source type | DC, PoE |
| IP address filtering | Yes |
| Alarm output channels | 1 |
| Audit log | Yes |
| Alarm input channels | 1 |
| Video motion detection | Yes |
| Digest authentication | Yes |
| PASSWORD PROTECTION | Yes |
| HTTPS encryption | Yes |
| Pixel counter | Yes |
| Password reset via email | Yes |
| Active tampering alarm | Yes |
| Mirror | Yes |
| Heartbeat | Yes |
| Security algorithms | TLS |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Web browser | Yes |
| Behavior analysis | Line crossing detection |
| Reset button | Yes |
| Diameter | 12.2 cm |
| Height | 97.6 mm |
| Weight | 600 g |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Number of simultaneous live view channels | 6 channels |
| Number of users | 32 user(s) |
| Wi-Fi | No |
| User access level | Administrator, Operator, User |
| Live view | Yes |
| Bluetooth | No |
| Networking standards | IEEE 802.3af |
| Certification | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Alarm input/output | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 33 |
| Dynamic range | 120 dB |
| Languages support | Multi |

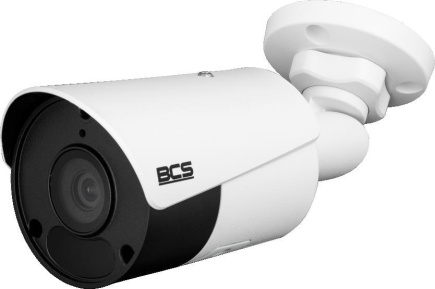

| Type | IP security camera |
| Connectivity Technology | Wired |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 141 mm |
| PACKAGE WEIGHT | 800 g |
| Number of Cameras | 1 |
| Sample rates | 8 - 48 kHz |
| Audio input channels | 1.0 channels |
| Bit rate range | 32 - 320 Kbit/s |
| Audio codecs | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| COMPATIBLE MEMORY CARDS | MicroSDXC |
| Maximum memory card size | 512 GB |
| Card reader integrated | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Camera shutter speed | 1/3 - 1/100000 s |
| Number of Privacy masking areas | 8 |
| Angle of rotation | 355° |
| Minimum illumination | 0 lx |
| Pan range | 0 - 355° |
| Lens viewing angle, diagonal | 132° |
| Lens viewing angle, vertical | 61° |
| Lens viewing angle, horizontal | 112° |
| Tilt angle range | 0 - 75° |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Progressive Scan | Yes |
| Number of sensors | 1 |
| Video compression formats | H.265+ |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Gain control type | Auto |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 8 Mbps |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum Resolution | 1920 x 1080 pixels |
| Night Vision | Yes |
| LED type | IR/White |
| Night vision distance | 30 m |
| Infra-red wavelength | 850 nm |
| Maximum aperture number | 1.6 |
| Detect distance | 42 m |
| Observe distance | 16 m |
| Recognize distance | 8 m |
| Fixed focal length | 2.8 mm |
| Identify distance | 4 m |
| Number of lenses | 1 |
| Warnings | The product contains electronic components; do not dispose of with the normal household waste. |
