| I code | IK10 |
| Housing material | Aluminium |
| Protection features | Dust resistant |
| International Protection (IP) code | IP67 |

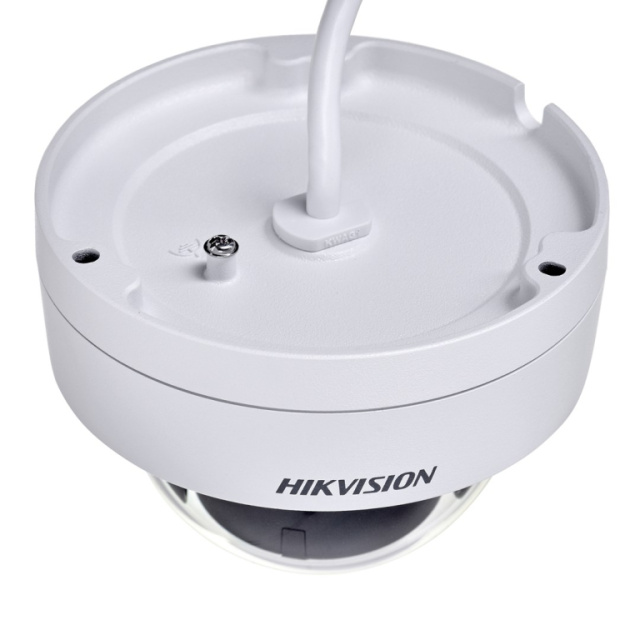

| Mounting Type | Ceiling/wall |
| Product colour | White |
| Form factor | Dome |
| DC output voltage | 12 |
| Power consumption (max) | 6 W |
| Power consumption (Power over Ethernet (PoE)) | 7.5 W |
| DC output current | 0.5 A |

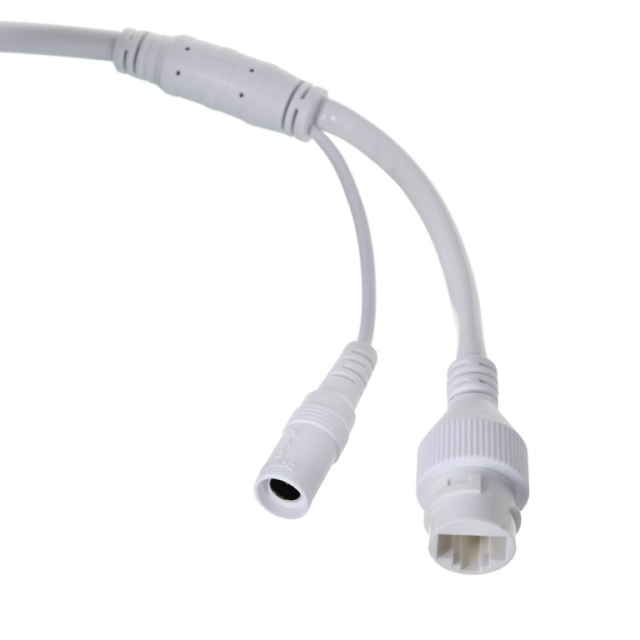

| Power source type | DC, PoE |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Anti-flicker | Yes |
| Mirror | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection |
| IP address filtering | Yes |
| PASSWORD PROTECTION | Yes |
| Video motion detection | Yes |
| Heartbeat | Yes |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Web browser | Yes |
| PACKAGE WEIGHT | 720 g |
| Package width | 134 mm |
| Package height | 108 mm |
| Package depth | 134 mm |
| Weight | 520 g |
| Networking standards | IEEE 802.3af |
| Ethernet LAN | Yes |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet interface type | Fast Ethernet |
| Number of users | 32 user(s) |
| Quality of Service (QoS) support | Yes |
| Certification | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Day/night mode | Yes |
| Languages support | Multi |
| Connectivity Technology | Wired |
| Wide Dynamic Range (WDR) | Yes |

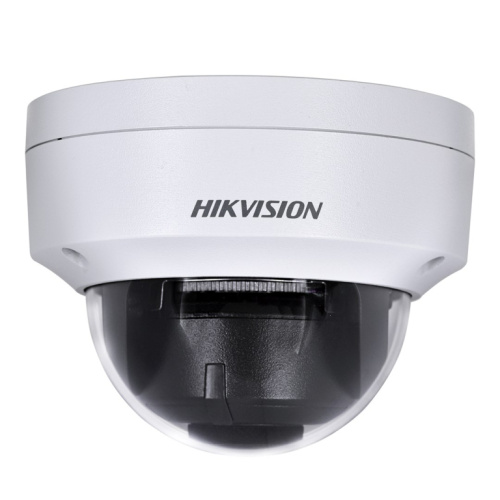

| Type | IP security camera |
| Number of languages | 33 |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Indoor & outdoor |
| Number of Cameras | 1 |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Built-in HDD | No |
| Maximum memory card size | 256 GB |
| COMPATIBLE MEMORY CARDS | MicroSDHC |
| Ethernet LAN (RJ-45) ports | 1 |
| Pan range | 0 - 355° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Lens viewing angle, vertical | 57° |
| Lens viewing angle, diagonal | 128° |
| Camera pan control | Yes |
| Lens viewing angle, horizontal | 107° |
| Tilt angle range | 0 - 75° |
| Camera tilt control | Yes |
| Angle of rotation | 355° |
| Harmonized System (HS) code | 85258900 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Progressive Scan | Yes |
| Number of sensors | 1 |
| Supported graphics resolutions | 3840 x 2160 |
| Video compression formats | H.265 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Image quality adjustment | Sharpness |
| Region of Interest (ROI) encoding | Yes |
| Frame rate | 30 fps |
| Total megapixels | 8 MP |
| Gain control type | Auto |
| Maximum Resolution | 3840 x 2160 pixels |
| Highlight Compensation (HLC) | Yes |
| Video streaming | Yes |
| Bit rate | 32 Kbps - 16 Mbps |
| Privacy masking | Yes |
| LED type | IR |
| Night vision distance | 30 m |
| Infra-red wavelength | 850 nm |
| Night Vision | Yes |
| Maximum aperture number | 1.6 |
| Fixed focal length | 2.8 mm |
| Recognize distance (wide) | 17 m |
| Identify distance (wide) | 9 m |
| Number of lenses | 1 |
