I code | IK10 |
Product colour | White |
Form factor | Dome |
Housing material | Metal |
International Protection (IP) code | IP67 |
Mounting Type | Ceiling |
Weatherproof | Yes |
Power Over Ethernet (PoE) | Yes |
Power consumption (max) | 11 W |
Power source type | DC, PoE |
Power consumption (Power over Ethernet (PoE)) | 12.9 W |
DC output voltage | 12 |
DC output current | 0.9 A |
Heartbeat | Yes |
Digital watermark | Yes |
Mirror | Yes |
Active tampering alarm | Yes |
Anti-flicker | Yes |
IP address filtering | Yes |
PASSWORD PROTECTION | Yes |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Reset button | Yes |
Web browser | Yes |
Behavior analysis | Intrusion detection, Line crossing detection |
Weight | 890 g |
Height | 111.6 mm |
Diameter | 15.3 cm |
Quality of Service (QoS) support | Yes |
Ethernet interface type | Fast Ethernet |
Ethernet LAN | Yes |
Networking standards | IEEE 802.1x |
Cabling technology | 10/100Base-T(X) |
Number of users | 32 user(s) |
Wide Dynamic Range (WDR) | Yes |
Connectivity Technology | Wired |

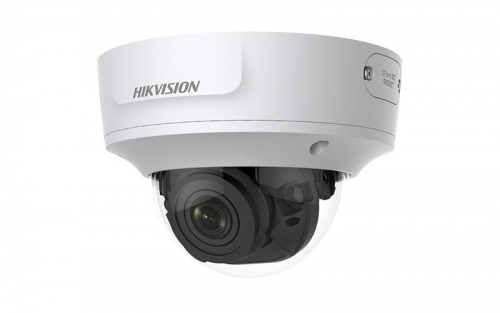

Type | IP security camera |
Infrared (IR) cut-off filter | Yes |
Placement supported | Indoor & outdoor |
Alarm input/output | Yes |
Day/night mode | Yes |
PACKAGE WEIGHT | 1.3 kg |
Number of Cameras | 1 |
Audio output channels | 1.0 channels |
Audio formats supported | G.722.1 |
Audio input channels | 1.0 channels |
COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
Card reader integrated | Yes |
Maximum memory card size | 128 GB |
Ethernet LAN (RJ-45) ports | 1 |
Interface | RJ-45 |
Tilt angle range | 0 - 75° |
Minimum illumination | 0 lx |
Camera shutter speed | 1/3 - 100000 s |
Pan range | 0 - 355° |
Angle of rotation | 355° |
Progressive Scan | Yes |
Sensor type | CMOS |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Back Light Compensation (BLC) | Yes |
Maximum Resolution | 1920 x 1080 pixels |
FULL HD | Yes |
Image quality adjustment | Contrast |
Frame rate | 30 fps |
Video compression formats | H.265 |
3D NR (Noise Reduction) | Yes |
Privacy masking | Yes |
Region of Interest (ROI) encoding | Yes |
Total megapixels | 2 MP |
Noise reduction | Yes |
Analog signal format system | NTSC |
LED type | IR |
Night vision distance | 50 m |
Night Vision | Yes |
Infra-red wavelength | 850 nm |
Maximum aperture number | 1.4 |
Focal length range | 2.8 - 12 mm |
Focus | Motorized |
Warnings | Avoid direct contact with water to prevent electrical damage. |
