Mounting Type | Ceiling/wall |
Product colour | White |
International Protection (IP) code | IP66 |
Form factor | Dome |
I code | IK10 |
Protection features | Water resistant |
Power source type | AC |
AC input voltage | 24 V |
Power consumption (max) | 42 W |
Intelligent Video Surveillance (IVS) system features | Face detection |
Privacy protection | Yes |
PASSWORD PROTECTION | Yes |
IP address filtering | Yes |
Security algorithms | EAP-MD5 |
Active tampering alarm | Yes |
Alarm output channels | 1 |
Video motion detection | Yes |
Digital watermark | Yes |
HTTPS encryption | Yes |
Alarm input channels | 2 |
Operating relative humidity (H-H) | 0 - 90% |
Operating temperature (T-T) | -30 - 65 °C |
Reset button | Yes |
Diameter | 22 cm |
Weight | 5 kg |
Live view | Yes |
Ethernet LAN | Yes |
Ethernet interface type | Fast Ethernet |
Wi-Fi | No |
Networking standards | IEEE 802.1x |
Bluetooth | No |
Quality of Service (QoS) support | Yes |
Number of users | 32 user(s) |
User access level | Administrator, Operator, User |
Placement supported | Outdoor |
Connectivity Technology | Wired |
Infrared (IR) cut-off filter | Yes |

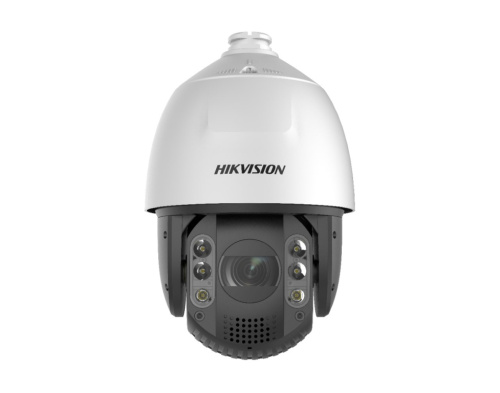

Type | IP security camera |
Dynamic range | 120 dB |
Alarm input/output | Yes |
Day/night mode | Yes |
Wide Dynamic Range (WDR) | Yes |
Number of Cameras | 1 |
Voice Codecs | MP2L2 |
Built-in speaker(s) | Yes |
Signal-to-Noise Ratio (SNR) | 52 dB |
COMPATIBLE MEMORY CARDS | MicroSDXC |
Card reader integrated | Yes |
Maximum memory card size | 256 GB |
Built-in HDD | No |
Ethernet LAN (RJ-45) ports | 1 |
Camera shutter speed | 1/1 - 1/30000 s |
Tilt angle range | -15 - 90° |
Camera tilt control | Yes |
Tilt preset speed | 200 °/sec |
Pan speed | 160 °/sec |
Camera pan control | Yes |
Pan range | 0 - 360° |
Pan preset speed | 240 °/sec |
Tilt speed | 120 °/sec |
Number of sensors | 1 |
Sensor type | CMOS |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Progressive Scan | Yes |
Region of Interest (ROI) encoding | Yes |
Image quality adjustment | Sharpness |
Maximum Resolution | 1920 x 1080 pixels |
Noise reduction technology | 3D noise reduction |
Supported graphics resolutions | 352 x 288 |
Highlight Compensation (HLC) | Yes |
Video compression formats | H.265+ |
Bit rate | 32 Kbps - 16 Mbps |
Gain control type | Auto |
Total megapixels | 2 MP |
Video streaming | Yes |
Privacy masking | Yes |
Noise reduction | Yes |
Frame rate | 30 fps |
Back Light Compensation (BLC) | Yes |
Night Vision | Yes |
Night vision distance | 200 m |
LED type | IR |
Number of lenses | 1 |
Zoom capability | Yes |
Focus | Motorized/Manual |
Auto focus | Yes |
Optical zoom | 32x |
Digital zoom | 16x |
Maximum aperture number | 1.6 |
