Product colour | White |
International Protection (IP) code | IP67 |
I code | IK08 |
Mounting Type | Ceiling/wall |

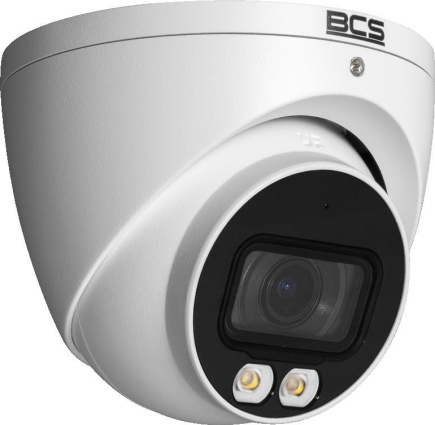

Form factor | Dome |
Power source type | DC, PoE |
Power consumption (Power over Ethernet (PoE)) | 7 W |
DC output voltage | 12 |
Intelligent Video Surveillance (IVS) system features | Face detection |
Video motion detection | Yes |
Operating temperature (T-T) | -30 - 60 °C |
Storage relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Web-based management | Yes |
Reset button | Yes |
Behavior analysis | Intrusion detection, Line crossing detection |
Weight | 380 g |
PACKAGE WEIGHT | 615 g |
Height | 57.4 mm |
Package width | 134 mm |
Package depth | 134 mm |
Diameter | 11 cm |
Package height | 108 mm |
Bluetooth | No |
Networking standards | IEEE 802.3af |
Wi-Fi data rate (max) | 300 Mbit/s |
Wi-Fi | Yes |
Ethernet interface type | Fast Ethernet |
Ethernet LAN | Yes |
Wi-Fi standards | Wi-Fi 4 (802.11n) |
Quality of Service (QoS) support | Yes |
Number of users | 32 user(s) |
Connectivity Technology | Wired & Wireless |
Type | IP security camera |
Wide Dynamic Range (WDR) | Yes |
Alarm input/output | Yes |
Day/night mode | Yes |
Infrared (IR) cut-off filter | Yes |
Number of languages | 33 |
Placement supported | Outdoor |
Number of Cameras | 1 |
Audio output channels | 1 channels |
Audio formats supported | MP3 |
Voice Codecs | G.711ulaw |
Sample Rate | 48 kHz |
Audio input channels | 1 channels |
COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
Built-in HDD | No |
Card reader integrated | Yes |
Maximum memory card size | 256 GB |
Ethernet LAN (RJ-45) ports | 1 |
Tilt angle range | 0 - 75° |
Angle of rotation | 360° |
Camera tilt control | Yes |
Camera shutter speed | 1/3 - 1/100000 s |
Camera pan control | Yes |
Pan range | -30 - 30° |
Sensor type | CMOS |
Optical sensor size | 25.4 / 3 mm (1 / 3") |
Progressive Scan | Yes |
Number of sensors | 1 |
Maximum Resolution | 2688 x 1520 pixels |
Bit rate | 32 Kbps - 8 Mbps |
Back Light Compensation (BLC) | Yes |
Highlight Compensation (HLC) | Yes |
Video compression formats | H.264+ |
Frame rate | 30 fps |
Total megapixels | 4 MP |
Gain control type | Auto |
Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Noise reduction | Yes |
Image quality adjustment | Saturation |
Video streaming | Yes |
Region of Interest (ROI) encoding | Yes |
Noise reduction technology | 3D noise reduction |
Night vision distance | 30 m |
LED type | IR |
Infra-red wavelength | 850 nm |
Night Vision | Yes |
Maximum aperture number | 1.6 |
Recognize distance | 13 m |
Fixed focal length | 2.8 mm |
Number of lenses | 1 |
Observe distance | 25 m |
Identify distance | 6 m |
Detect distance | 64 m |
