Lens mount interface | M12 |
Audio Input | 1 |
Housing material | Metal |
Product colour | Black |
International Protection (IP) code | IP67 |
Protection features | Dust resistant |
Mounting Type | Ceiling/wall |
Form factor | Turret |
Power consumption (Power over Ethernet (PoE)) | 18 W |
Power consumption (max) | 16 W |
Power source type | DC, PoE |
DC output voltage | 12 |
HTTPS encryption | Yes |
Security algorithms | EAP-LEAP |
Audit log | Yes |
Flash log | Yes |
IP address filtering | Yes |
Intelligent Video Surveillance (IVS) system features | Vehicle detection |
Alarm input channels | 1 |
Human and vehicle targets classification | Yes |
Alarm output channels | 1 |
Digital watermark | Yes |
Digest authentication | Yes |
Video motion detection | Yes |
Mirror | Yes |
Active tampering alarm | Yes |
Heartbeat | Yes |
PASSWORD PROTECTION | Yes |
Password reset via email | Yes |
Pixel counter | Yes |
Storage temperature (T-T) | -30 - 60 °C |
Operating temperature (T-T) | -30 - 60 °C |
Storage relative humidity (H-H) | 0 - 95% |
Operating relative humidity (H-H) | 0 - 95% |
Reset button | Yes |
Height | 115.4 mm |
Weight | 780 g |
Diameter | 13.8 cm |
Bluetooth | No |
Wi-Fi | No |
Networking standards | IEEE 802.1x |
Ethernet interface type | Fast Ethernet |
Ethernet LAN | Yes |
Number of simultaneous live view channels | 6 channels |
User access level | Administrator, Operator, User |
Number of users | 32 user(s) |
Connectivity Technology | Wired |
Wide Dynamic Range (WDR) | Yes |

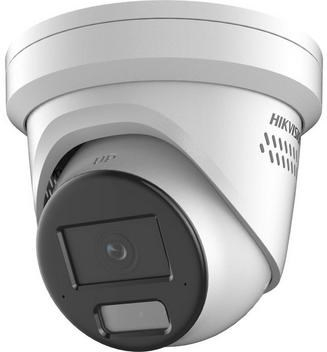

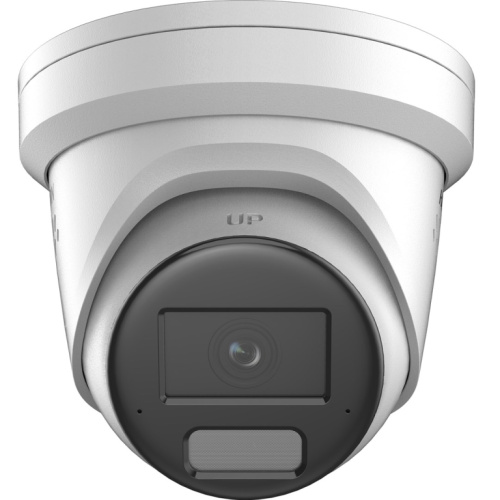

Type | IP security camera |
Placement supported | Indoor & outdoor |
Dynamic range | 120 dB |
Languages support | Multi |
Day/night mode | Yes |
Built-in light | Yes |
Infrared (IR) cut-off filter | Yes |
Package width | 170 mm |
Package depth | 170 mm |
Package height | 160 mm |
PACKAGE WEIGHT | 1.21 kg |
Number of Cameras | 1 |
Number of microphones | 2 |
Audio formats supported | AAC-LC |
Audio system | 2-way |
Sample rates | 8 - 48 kHz |
Bit rate range | 16 - 320 Kbit/s |
Built-in microphone | Yes |
Signal-to-Noise Ratio (SNR) | 52 dB |
COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
Card reader integrated | Yes |
Built-in HDD | No |
Maximum memory card size | 512 GB |
Ethernet LAN (RJ-45) ports | 1 |
Camera shutter speed | 1/3 - 1/100000 s |
Tilt angle range | 0 - 75° |
Lens viewing angle, vertical | 60° |
Camera tilt control | Yes |
Angle of rotation | 360° |
Lens viewing angle, diagonal | 144° |
Minimum illumination | 0 lx |
Pan range | 0 - 360° |
Camera pan control | Yes |
Lens viewing angle, horizontal | 115° |
Audio output | 1 |
Sensor type | CMOS |
Optical sensor size | 25.4 / 2.4 mm (1 / 2.4") |
Number of sensors | 1 |
Back Light Compensation (BLC) | Yes |
Video compression formats | H.264 |
Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Highlight Compensation (HLC) | Yes |
Image quality adjustment | Saturation |
Supported graphics resolutions | 640 x 360 |
Total megapixels | 6 MP |
Frame rate | 30 fps |
Region of Interest (ROI) encoding | Yes |
Bit rate | 32 Kbps - 16 Mbps |
Noise reduction | Yes |
Noise reduction technology | 3D noise reduction |
Privacy masking | Yes |
Maximum Resolution | 3200 x 1800 pixels |
Night vision distance | 30 m |
Night Vision | Yes |
Infra-red wavelength | 850 nm |
LED type | IR |
Maximum aperture number | 1 |
Fixed focal length | 2.8 mm |
Number of lenses | 1 |
Warnings | The product contains electronic components; do not dispose of with the normal household waste. |
Compliance certificates | KC |
