| Lens mount interface | M12 |
| Product colour | Black |
| Housing material | Metal |
| Mounting Type | Ceiling/wall |
| Protection features | Water resistant |
| International Protection (IP) code | IP67 |
| Form factor | Bullet |
| DC output current | 0.45 A |
| Power consumption (max) | 5.5 W |
| Power consumption (Power over Ethernet (PoE)) | 7 W |
| DC output voltage | 12 |
| Power source type | DC, PoE |
| Security algorithms | HTTPS |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password reset via email | Yes |
| Mirror | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection |
| Video motion detection | Yes |
| Heartbeat | Yes |
| Privacy protection | Yes |
| IP address filtering | Yes |
| Human and vehicle targets classification | Yes |
| Pixel counter | Yes |
| PASSWORD PROTECTION | Yes |
| Digest authentication | Yes |
| Automatic Network Replenishment (ANR) | Yes |
| Audit log | Yes |
| Flash log | Yes |
| Network access storage (NAS) | Yes |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Web-based management | Yes |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Weight | 525 g |
| Diameter | 7.44 cm |
| Length | 179.2 mm |
| Bluetooth | No |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi | No |
| Number of simultaneous live view channels | 6 channels |
| Live view | Yes |
| Number of users | 32 user(s) |
| Client interoperability | iVMS-4200, Hik-Connect, Hik-Central |
| User access level | Administrator, Operator, User |
| Connectivity Technology | Wired |
| Dynamic range | 120 dB |
| Languages support | Multi |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |

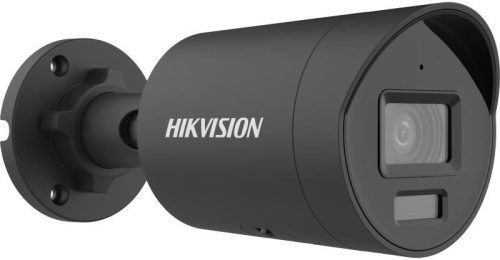

| Type | IP security camera |
| Placement supported | Outdoor |
| Number of languages | 33 |
| PACKAGE WEIGHT | 750 g |
| Package depth | 120 mm |
| Package height | 117 mm |
| Package width | 234 mm |
| Number of Cameras | 1 |
| Audio formats supported | G.711 A-law |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bit rate range | 8 - 320 Kbit/s |
| Built-in microphone | Yes |
| Sample rates | 8 - 48 kHz |
| Card reader integrated | Yes |
| COMPATIBLE MEMORY CARDS | MicroSDXC |
| Built-in HDD | No |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Tilt angle range | 0 - 90° |
| Minimum illumination | 0 lx |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Lens viewing angle, vertical | 54.7° |
| Lens viewing angle, horizontal | 100.2° |
| Lens viewing angle, diagonal | 119.7° |
| Number of Privacy masking areas | 4 |
| Browser supported | IE 10, IE 11, Chrome 57.0+, Firefox 52.0+ |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive Scan | Yes |
| Sensor type | CMOS |
| Video compression formats | H.264 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Total megapixels | 4 MP |
| Region of Interest (ROI) encoding | Yes |
| Image quality adjustment | Sharpness |
| Privacy masking | Yes |
| Smart IR | Yes |
| Maximum Resolution | 2688 x 1520 pixels |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Noise reduction | Yes |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 Kbps - 8192 Kbps |
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Night vision distance | 40 m |
| LED type | IR |
| Night Vision | Yes |
| Infra-red wavelength | 850 nm |
| Observe distance | 25 m |
| Maximum aperture number | 1 |
| Identify distance | 6 m |
| Number of lenses | 1 |
| Detect distance | 63 m |
| Recognize distance | 12 m |
| Fixed focal length | 2.8 mm |
| Warnings | The product contains electronic components; do not dispose of with the normal household waste. |
| Compliance certificates | RoHS |
