Product colour | White |

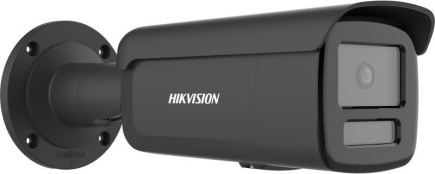

Form factor | Bullet |
International Protection (IP) code | IP67 |
Mounting Type | Wall |
Power source type | DC, PoE |
Power consumption (typical) | 17 W |
Power consumption (max) | 17 W |
DC output voltage | 12 |
DC output current | 1.41 A |
Power consumption (Power over Ethernet (PoE)) | 18 W |
Anti-flicker | Yes |
Heartbeat | Yes |
Audit log | Yes |
Mirror | Yes |
Network access storage (NAS) | Yes |
Flash log | Yes |
Digest authentication | Yes |
Pixel counter | Yes |
Video motion detection | Yes |
Password reset via email | Yes |
Automatic Network Replenishment (ANR) | Yes |
Human and vehicle targets classification | Yes |
Storage temperature (T-T) | -30 - 60 °C |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Cloud-managed | Yes |
Remotely operated | Yes |
Management software | iVMS-4200,Hik-Connect,Hik-Central |
Weight | 1.25 kg |
Height | 91.2 mm |
Depth | 93.9 mm |
Width | 286.7 mm |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Ethernet LAN | Yes |
Wi-Fi | Yes |
Live view | Yes |
Number of users | 32 user(s) |
User access level | Administrator, Operator, User |
Number of simultaneous live view channels | 6 channels |
Connectivity Technology | Wired |
Built-in light | Yes |
Type | IP security camera |
Languages support | Multi |
Dynamic range | 130 dB |
Number of languages | 33 |
Day/night mode | Yes |
Placement supported | Indoor & outdoor |
Infrared (IR) cut-off filter | Yes |
PACKAGE WEIGHT | 1.8 kg |
Package width | 386 mm |
Package depth | 156 mm |
Package height | 155 mm |
Number of Cameras | 1 |
Manual | Yes |
Built-in speaker(s) | Yes |
Audio formats supported | G.722.1 |
Number of microphones | 2 |
Bit rate range | 8 - 380 Kbit/s |
Sample rates | 8 - 48 kHz |
COMPATIBLE MEMORY CARDS | MicroSDXC |
Card reader integrated | Yes |
Built-in HDD | No |
Maximum memory card size | 512 GB |
Ethernet LAN (RJ-45) ports | 1 |
Tilt angle range | 0 - 90° |
Minimum illumination | 0 lx |
Camera shutter speed | 1 - 1/100000 s |
Angle of rotation | 360° |
Number of Privacy masking areas | 4 |
Pan range | 0 - 360° |
Lens viewing angle, diagonal | 117.4° |
Lens viewing angle, vertical | 48.3° |
Lens viewing angle, horizontal | 111.1° |
Number of sensors | 1 |
Progressive Scan | Yes |
Sensor type | CMOS |
Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
Maximum Resolution | 2688 x 1520 pixels |
Supported graphics resolutions | 2688 x 1520 |
Back Light Compensation (BLC) | Yes |
Video recording | Yes |
Region of Interest (ROI) encoding | No |
Video streaming | Yes |
Video compression formats | H.264+ |
Noise reduction | Yes |
Noise reduction technology | 3D noise reduction |
Video formats supported | H.265 |
Highlight Compensation (HLC) | Yes |
Frame rate | 30 fps |
Smart IR | Yes |
Digital Wide Dynamic Range (DWDR) | Yes |
Total megapixels | 4 MP |
Image stabilizer | Yes |
LED type | IR/White |
Night vision distance | 60 m |
Infra-red wavelength | 850 nm |
Night Vision | Yes |
Maximum aperture number | 1 |
Number of lenses | 1 |
Detect distance | 75 m |
Fixed focal length | 4 mm |
Fixed focus | Yes |
Recognize distance | 15 m |
Identify distance | 7 m |
Observe distance | 30 m |
