International Protection (IP) code | IP67 |
Form factor | Tube/dome |
Product colour | Black |
Housing material | Metal, Plastic |
Mounting Type | Wall/ceiling |
Power consumption (max) | 5 W |
Power consumption (typical) | 2.7 W |
Power source type | DC, PoE |
Power consumption (Power over Ethernet (PoE)) | 5.9 W |
DC output voltage | 12 |
Operating temperature (T-T) | -40 - 55 °C |
Storage temperature (T-T) | -40 - 55 °C |
Operating relative humidity (H-H) | 0 - 95% |
Web-based management | Yes |
Web browser | Yes |
Weight | 470 g |
Width | 70 mm |
Depth | 166.2 mm |
Height | 70 mm |
Networking standards | IEEE 802.3af |
Wi-Fi | No |
Bluetooth | No |
Ethernet interface type | 10 Megabit Ethernet |
4G LTE | No |
Mobile operating systems supported | iOS |

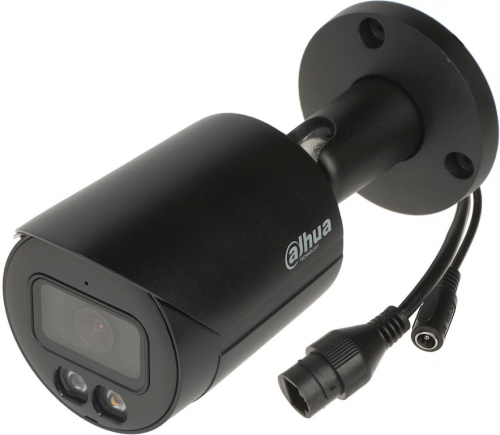

Type | IP security camera |
Connectivity Technology | Wired |
Signal-to-Noise Ratio (SNR) | 56 dB |
Wide Dynamic Range (WDR) | 120 dB |
Placement supported | Outdoor |
Number of Cameras | 1 |
Built-in loudspeaker | No |
Built-in microphone | Yes |
Two-way talk | N |
Audio codecs | G.711a, G.711Mu, G.726, PCM |
RAM Capacity | 256 MB |
ROM capacity | 128 MB |
Motion Detection | Yes |
Lens viewing angle, vertical | 58° |
People detection | Yes |
Camera shutter speed | 1/3 - 1/100000 s |
Minimum illumination | 0.008 lx |
Adjustment shutter speed | Auto/Manual |
Vertical rotation angle | 0 - 90° |
Viewing angle, diagonal | 132° |
Horizontal rotation angle | 0 - 360° |
Sensor type | HD CMOS |
Number of sensors | 1 |
Progressive Scan | Yes |
Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Maximum Resolution | 3840 x 2160 pixels |
Video streaming | Yes |
Video compression formats | H.265 |
Frame rate | 25 / 30 fps |
Total megapixels | 8 MP |
LED type | IR / White light LED |
Night vision distance | 30 m |
Number of illumination LEDs | 2 |
Night Vision | Yes |
Maximum aperture number | 1.6 |
Lens type | Fixed focal length lens |
Closest focusing distance | 1.5 m |
Focal length range | 2.8 mm |
Number of lenses | 1 |
