| Product colour | White |
| International Protection (IP) code | IP66 |

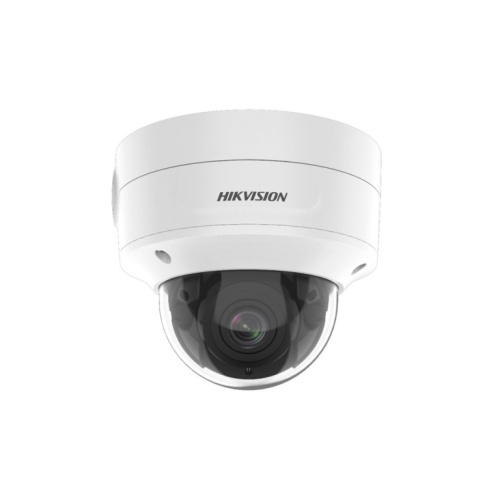

| Form factor | Dome |
| I code | IK10 |
| Protection features | Water resistant |
| Mounting Type | Ceiling/wall |
| Power source type | DC, PoE |
| Power consumption (max) | 10.5 W |
| Power consumption (Power over Ethernet (PoE)) | 12.5 W |
| DC output voltage | 12 |
| Security algorithms | TLS |
| PASSWORD PROTECTION | Yes |
| Mirror | Yes |
| Intelligent Video Surveillance (IVS) system features | Scene change |
| Heartbeat | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Anti-flicker | Yes |
| HTTPS encryption | Yes |
| Video motion detection | Yes |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | -30 - 60 °C |
| Web browser | Yes |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Weight | 845 g |
| Package width | 244 mm |
| Length | 13.3 cm |
| Package depth | 174 mm |
| Package height | 173 mm |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet interface type | Fast Ethernet |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af |
| Number of users | 32 user(s) |
| Certification | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)UL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);LOA (IEC/EN 60950-1)CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| Connectivity Technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Number of languages | 33 |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Languages support | Multi |
| Number of Cameras | 1 |
| Audio output channels | 1 channels |
| Voice Codecs | G.711alaw |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Audio input channels | 1 channels |
| COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Maximum memory card size | 256 GB |
| Built-in HDD | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Tilt angle range | 0 - 75° |
| Angle of rotation | 355° |
| Camera tilt control | Yes |
| Lens viewing angle, vertical | 56° |
| Pan range | 0 - 355° |
| Lens viewing angle, horizontal | 108° |
| Lens viewing angle, diagonal | 131° |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Progressive Scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Supported graphics resolutions | 640 x 480 (VGA) |
| Maximum Resolution | 2688 x 1520 pixels |
| Bit rate | 32 Kbps - 8 Mbps |
| Highlight Compensation (HLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Contrast |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Total megapixels | 4 MP |
| Noise reduction | Yes |
| Video compression formats | H.265+ |
| Region of Interest (ROI) encoding | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Night Vision | Yes |
| Identify distance (wide) | 6.4 m |
| Number of lenses | 1 |
| Identify distance (tele) | 19 m |
| Focal length range | 2.8 - 12 mm |
| Recognize distance (wide) | 12.8 m |
| Detect distance (wide) | 64 m |
| Maximum aperture number | 1.4 |
