Services | |
Type | IP-Sicherheitskamera |
transmission technology | Kabelgebunden |
Eigenschaft | Iris |
certification | CE, FCC, ONVIF |
Design | |

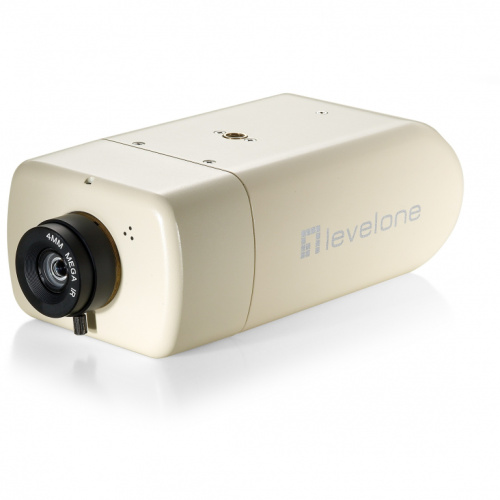

form factor | Box |
attachment type | Decke/Wand |
Product color | Beige |
LED indicators | Aktivität, Link, Leistung |
Camera | |
minimum lighting | 0,02 Lux |
viewing angle (horizontal) | 65.4° |
white balance | Auto |
Verschlusstyp | Elektronisch |
camera shutter speed | 1 - 1/10000 s |
image sensor | |
Image sensor size | 25,4 / 2,7 mm (1 / 2.7") |
Sensor-Typ | CMOS |
lens | |
digital zoom | 8x |
Focus setting | 1.5 |
Fixed focal length | 4 mm |
Video | |
Maximum resolution | 1920 x 1080 Pixel |
total megapixels | 2 MP |
Supported video formats | AVI |
Video compression formats | H.264, M-JPEG |
Supported graphic resolutions | 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080) |
Supported video modes | 1080p |
Up to 30 frames per second | 30 fps |
image quality adjustment | Helligkeit, Kontrast, Farbsättigung, Schärfe |
Audio | |
Audio-System | 2-Wege |
voice codec | G.711, G.726 |
network | |
Ethernet interfaces type | Schnelles Ethernet |
mesh standard | IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
Supported network protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS |
storage medium | |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
Max memory card size | 32 GB |
connections and interfaces | |
Number of Ethernet LAN ports (RJ-45) | 1 |
BNC Ausgänge | 1 |
headphone outputs | 1 |
interface | RJ-45 |
safety | |
Password protection type | Benutzer |
management functions | |
energy | |
energy source | PoE |
Power consumption (standard operation) | 5 W |
operating conditions | |
operating temperatur | -10 - 50 °C |
Operating relative humidity | 10 - 90% |
weight and dimensions | |
broad | 125 mm |
depth | 53 mm |
height | 82 mm |
Weight | 380 g |
package weight | 900 g |
scope of delivery | |
Technical details | |
Anzahl der Video-Streams | 2 |
logistic data | |
Goods tariff number (HS) | 85258900 |
