Services | |
Type | IP-Sicherheitskamera |
Unterstützte Positionierung | Innen & Außen |
transmission technology | Kabelgebunden |
Eigenschaft | Schnellinstallationsanleitung |
certification | CE, FCC, Onvif |
Design | |

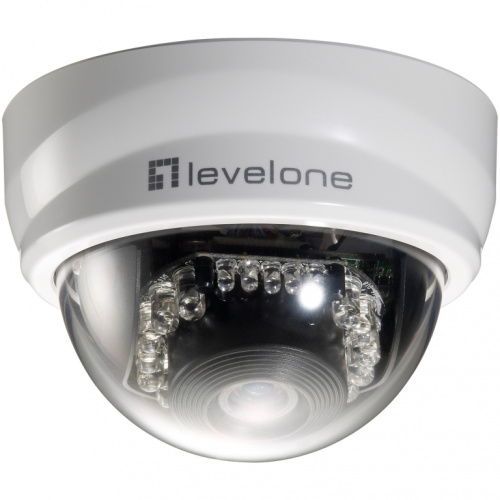

form factor | Dome |
attachment type | Tisch/Decke |
Product color | Schwarz, Weiß |
LED indicators | Link, Leistung |
Country of origin | Taiwan |
Camera | |
minimum lighting | 1 Lux |
white balance | Auto |
Verschlusstyp | Elektronisch |
camera shutter speed | 1/30 - 1/1000000 s |
image sensor | |
Image sensor size | 25,4 / 2,7 mm (1 / 2.7") |
Sensor-Typ | CMOS |
lens | |
Focus setting | 2.0 |
Fixed focal length | 4 mm |
night vision | |
night vision distance | 10 m |
LED Type | IR |
Number of illumination LEDs | 19 |
Video | |
Maximum resolution | 1920 x 1080 Pixel |
total megapixels | 2 MP |
Supported video formats | MPEG4 |
Video compression formats | H.264, M-JPEG, MPEG4 |
Supported graphic resolutions | 320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
Supported video modes | 240p, 480p, 720p, 1080p |
Up to 30 frames per second | 30 fps |
image quality adjustment | Helligkeit, Kontrast, Farbsättigung, Schärfe |
Audio | |
Audio-System | 1-Weg |
voice codec | AMR |
network | |
Ethernet interfaces type | Schnelles Ethernet |
mesh standard | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
Supported network protocols | TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, NTP, PPPoE, DNS, DHCP, RTSP, Samba |
storage medium | |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
Max memory card size | 64 GB |
connections and interfaces | |
Number of Ethernet LAN ports (RJ-45) | 1 |
interface | RJ-45 |
safety | |
Password protection type | Benutzer |
management functions | |
energy | |

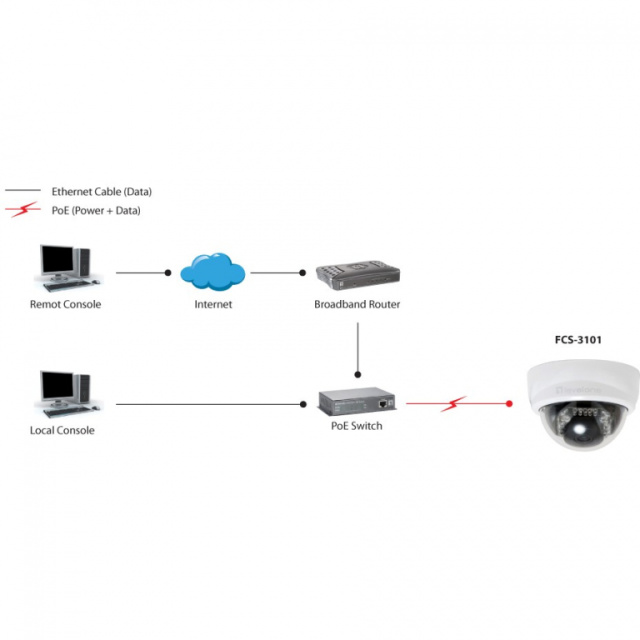

energy source | PoE |
AC input voltage | 24 V |
Power consumption (standard operation) | 6 W |
DC output current | 1,5 A |
operating conditions | |
operating temperatur | 0 - 40 °C |
Operating relative humidity | 10 - 80% |
weight and dimensions | |
broad | 63 mm |
depth | 63 mm |
height | 93 mm |
Weight | 380 g |
package weight | 700 g |
packaging type | Box |
sustainability | |
Konformitätsbescheinigungen | RoHS |
scope of delivery | |
Technical details | |
Anzahl der Video-Streams | 2 |
logistic data | |
Goods tariff number (HS) | 85258900 |
