| Services | |

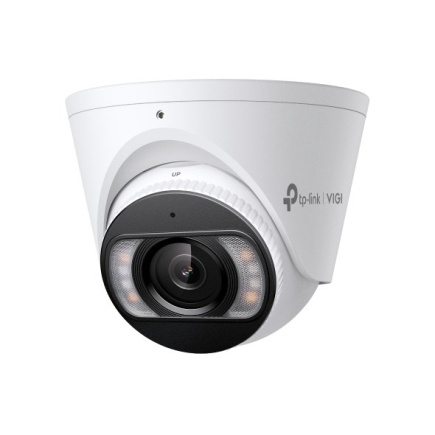

| Type | IP-Sicherheitskamera |
| Unterstützte Positionierung | Innen & Außen |
| transmission technology | Kabelgebunden |
| Eigenschaft | Schrauben enthalten |
| Dynamischer Bereich | 120 dB |
| Design | |
| form factor | Dome |
| attachment type | Zimmerdecke |
| Product color | Weiß |
| LED indicators | Aktivität, Leistung |
| protective function | Vandalismussicher, Wetterfest |
| International degree of protection (IP code) | IP67 |
| Country of origin | China |
| Camera | |
| minimum lighting | 0 Lux |
| viewing angle (horizontal) | 38 - 98° |
| viewing angle (vertical) | 21 - 52° |
| Lens viewing angle, diagonal | 43 - 115° |
| camera shutter speed | 1/3 - 1/100000 s |
| image sensor | |
| Image sensor size | 25,4 / 2,7 mm (1 / 2.7") |
| Sensor-Typ | CMOS |
| lens | |
| Optical zoom | 4x |
| digital zoom | 16x |
| number of lenses | 1 |
| focal range | 2.8 - 12 mm |
| Maximum f-number | 1,6 |
| night vision | |
| night vision distance | 30 m |
| LED Type | IR |
| Video | |
| Maximum resolution | 1920 x 1080 Pixel |
| total megapixels | 2 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphic resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Up to 30 frames per second | 30 fps |
| noise canceling technology | 3D-Rauschunterdrückung |
| gain control type | Auto |
| image quality adjustment | Helligkeit, Kontrast, Farbsättigung, Schärfe |
| Audio | |
| Audio-System | 1-Weg |
| network | |
| mesh standard | IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Supported network protocols | TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour |
| storage medium | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Max memory card size | 256 GB |
| connections and interfaces | |
| Number of Ethernet LAN ports (RJ-45) | 1 |
| safety | |
| Intelligent Video Surveillance (IVS) system properties | Eindringen, Erkennung Leitungskreuzungen, Fehlendes Objekt |
| energy | |
| energy source | Gleichstrom, PoE |
| Power consumption (max.) | 10 W |
| Power Consumption (Power over Ethernet (PoE)) | 12 W |
| DC output volts | 12 |
| operating conditions | |
| operating temperatur | -30 - 60 °C |
| Operating relative humidity | 5 - 95% |
| weight and dimensions | |
| broad | 116 mm |
| depth | 153 mm |
| height | 153 mm |
| Weight | 800 g |
| package weight | 1,3 kg |
| packaging type | Box |
| sustainability | |
| Konformitätsbescheinigungen | CE, Eidgenössische Kommunikationskommission (FCC), UKCA |
| scope of delivery | |
| number of cameras | 1 |
| logistic data | |
| Pallet length (gross) | 80 cm |
| Pallet width (gross) | 120 cm |
| Palettenhöhe (ugly) | 143 cm |
| Customs tariff number (TARIC) | 8525890000 |
| Goods tariff number (HS) | 852589 |
| Shipping box width | 568 mm |
| Shipping carton length | 345 mm |
| Shipping carton height | 590 mm |
| Shipping carton weight | 16 kg |
| Number of products per shipping carton | 12 Stück(e) |
