Type Fixed/Outdoor | Pixel Resolution 5 Mega Pixel | Focal Length 2.8mm | IR Illumination | Sensor size 1/2.7" CMOS | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.003 Lux | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xRJ45 | Power options PoE/12V | Power supply requirements 12V DC/PoE (802.3af) | Environment Outdoor | Operating temperature range -40°C~+60°C | Dimensions 162.1 mm × Φ70.1 mm
Vendor Homepage | www.dahuasecurity.com/products/All-Products/Dedicated-Products/Project-Exclusive/Network-Cameras/IPC-HFW1530S-S6 |
Description | - 1/2.7” 5Megapixel progressive CMOS, 2880 × 1620 @20FPS
- Minimum illumination: 0.03 Lux @ F2.0 (Color, 30 IRE), 0.003 Lux @ F2.0 (B/W, 30 IRE)
- True Day/Night (ICR), BLC/ HLC/ DWDR(120dB) / 3D DNR
- Fixed 2.8 mm Lens (106°)
- Up to 30 meters IR Illumination, Smart IR
- H.265+/H.265/H.264+/H.264 encoding, ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
- Bullet design, metal shell, IP67, -40°C~+60°C, PoE / 12VDC power 6W
- Free IP monitoring software available
|

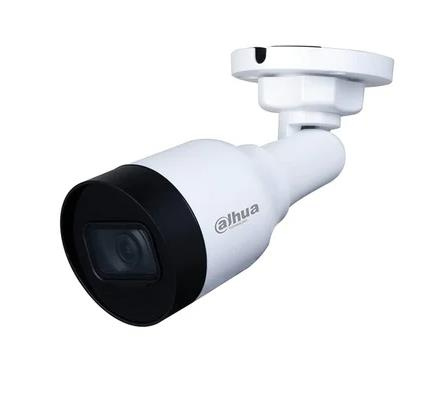

Model | IPC-HFW1530S-0280B-S6 |
Camera design | Bullet |
Network Camera Type | Outdoor/Fixed |
Pixel Resolution | 5 Mega Pixel |
Focal length | 2.8mm |
IR Illumination | Yes |
Sensor size | 1/2.7" CMOS |
Microphone | Built-in |
Lens Mount | M12 |
Min. Illumination | 0.003 Lux |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
RJ45 | 1 |
Power Options | PoE/12V |
Power supply requirements | 12V DC/PoE (802.3af) |
Power consumption | 6 Watts |
Environment | Outdoor |
Operating temperature range | -40°C~+60°C |
Dimensions | 162.1 mm × Φ70.1 mm |
Unit Net Weight | 0.32 kg |
Unit Gross Weight | 0.441 kg |
Unit Box Width | 0.1 |
Unit Box Length | 0.21 |
Unit Box Height | 0.11 |
Full Description Line | Type Fixed/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size 1/2.7" CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.003 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE/12V|Power supply requirements 12V DC/PoE (802.3af)|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions 162.1 mm × Φ70.1 mm |
Category Code | FNC |
