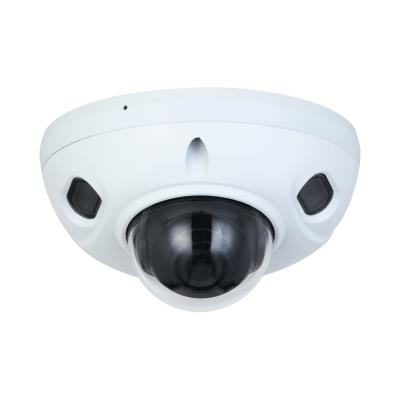

Type Fixed Dome/HDTV/Megapixel/Outdoor | Pixel Resolution 5 Mega Pixel | Focal Length 2.8 mm | IR Illumination | Sensor size 1/2.7” | Min. Illumination 0.005 Lux | Effective pixels 2960 (H) × 1668 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 256GB | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range -40°C~+60°C | Colour White | Dimensions 64.8 mm × Φ111.0 mm
| Description | 1/2.7”5Megapixel progressive CMOS, 2960 × 1668 @20FPS
Minimum illumination: 0.005 lux @ F1.4 (Color, 30 IRE)
True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
2.8 mm fixed lens (111°)
Up to 30 meters Smart IR Illumination
H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
Built-in MIC, G.711a; G.711Mu; PCM; G.726; G.723 encoding
Micro SD card up to 256GB supported
1/1 audio IO, / Alarm I/O
Metal case, IP67, IK10, -40°C~+60°C, PoE / 12VDC power, 5.9W max
Smart capabilities: Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Free IP monitoring software available
|
| Vendor Homepage | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HDBW3541F-AS-S2 |
| Model | IPC-HDBW3541F-AS-0280B-S2 |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Pixel Resolution | 5 Mega Pixel |
| Focal length | 2.8 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7” |
| Min. Illumination | 0.005 Lux |
| Effective pixels | 2960 (H) × 1668 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| RJ45 | 1 |
| Supports card capacities up to | 256GB |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Power consumption | 5.9 Watts |
| Environment | Outdoor |
| Operating temperature range | -40°C~+60°C |
| Colour | White |
| Dimensions | 64.8 mm × Φ111.0 mm |
| Unit Net Weight | 0.423 kg |
| Unit Gross Weight | 0.57 kg |
| Unit Box Width | 0.14 |
| Unit Box Length | 0.14 |
| Unit Box Height | 0.12 |
| Full Description Line | Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7”|Min. Illumination 0.005 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 64.8 mm × Φ111.0 mm |
| Category Code | FNC |
