Services | |
Video input channels | 32 Kanäle |
Number of channels played simultaneously | 256 Kanäle |
Maximum resolution | 4096 x 2160 Pixel |
Supported resolution | 2MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QC |
Eigenschaft | Schnellinstallationsanleitung |
Supported video formats | H.264, H.264+, H.265, H.265+ |
Maximum Frame Rate | 30 fps |
Eingangsbandbreite | 256 Mbit/s |
Ausgangsbandbreite | 160 Mbit/s |
hard disk | |
Maximum supported number of HDD | 4 |
Max storage capacity | 10 TB |
HDD interface | SATA |

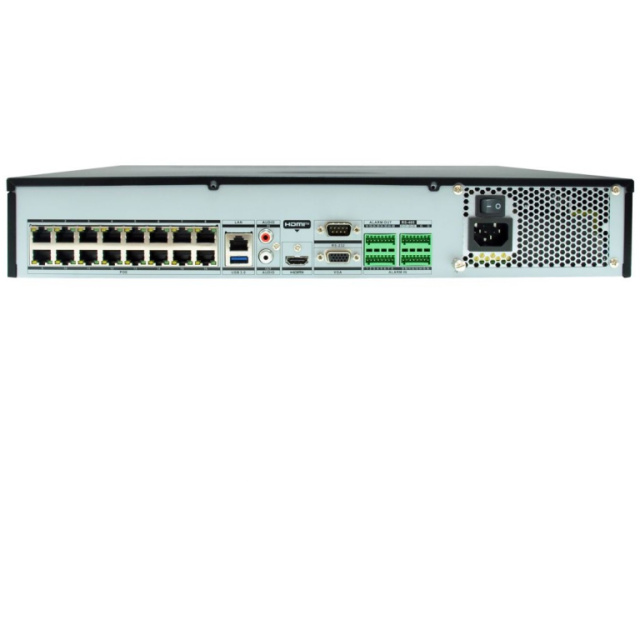

connections and interfaces | |
Number of Ethernet LAN ports (RJ-45) | 17 |
Number of Power over Ethernet (PoE) ports | 16 |
Number of HDMI ports | 1 |
VGA (D-Sub) output connectors | 1 |
Number of USB 2.0 ports | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports | 2 |
Audio RCA inputs | 1 |
Audio RCA outputs | 1 |
Number of eSATA ports | 1 |
RS-485-Anschlüsse | 1 |
RS-232 port | 1 |
features | |
Product color | Schwarz, Grau |
energy | |
Power consumption (max.) | 200 W |
Power consumption (standard operation) | 20 W |
Power over Ethernet (PoE) performance per port | 16 W |
system requirement | |
Supported browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V889 |
operating conditions | |
operating temperatur | -10 - 55 °C |
Operating relative humidity | 5 - 95% |
Technical details | |
Konformitätsbescheinigungen | BIS, CB, CE, Eidgenössische Kommunikationskommission (FCC), Industry Canada (IC), KC, RCM, REACH, RoHS, UKCA, UL, WEEE |
weight and dimensions | |
broad | 445 mm |
depth | 400 mm |
height | 75 mm |
Weight | 5 kg |
packaging type | Box |

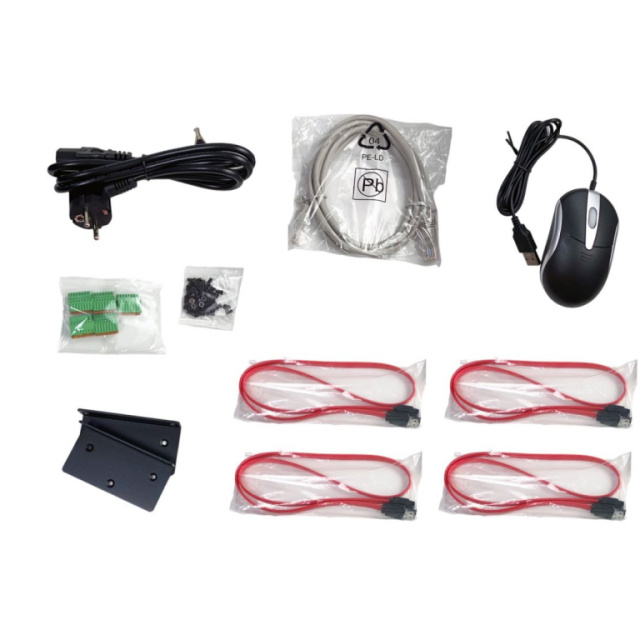

scope of delivery | |
Supplied cables | AC, SATA |
