| Product colour | White |
| Mounting Type | Wall |
| Form factor | Turret |
| International Protection (IP) code | IP65 |
| DC output current | 1 A |
| DC output voltage | 12 |
| Power source type | DC |
| Security algorithms | WPA-PSK |
| Video motion detection | Yes |
| Human and vehicle targets classification | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Reset button | Yes |
| Height | 129 mm |
| Width | 147 mm |
| Weight | 1.21 kg |
| Depth | 228 mm |
| Networking standards | IEEE 802.11a |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi | Yes |
| Bluetooth | No |
| Wi-Fi standards | 802.11a |
| User access level | Administrator, User |
| Number of users | 20 user(s) |
| Live view | Yes |
| Ethernet LAN | Yes |
| Supported network protocols | HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, ONVIF, NTP, DHCP, DNS, DDNS, P2P |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Type | IP security camera |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Antenna type | External |
| Auto-tracking | Yes |
| Antennas quantity | 2 |
| Connectivity Technology | Wireless |
| Placement supported | Outdoor |
| Virtual assistant | Google Assistant |

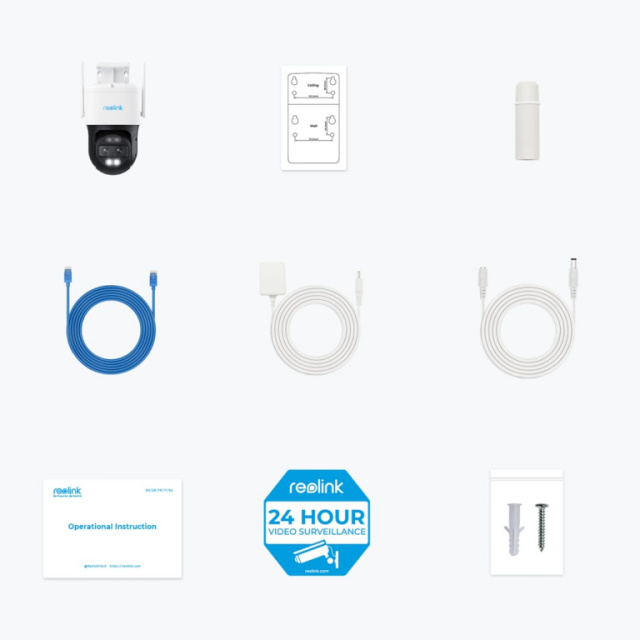

| Packaging content | 1* Trackmix Series W760
1* Mounting Template
1* Waterproof Lid
1* Power Adapter
1* 1m Network Cable
1* 4.5m Power Extension Cable
1* Surveillance Sticker
1* Quick Start Guide
1* Pack of Screws |
| Number of Cameras | 1 |
| Manual | Yes |
| Mounting Kit | Yes |
| Screws included | Yes |
| Audio system | 2-way |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Built-in HDD | No |
| COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Lens viewing angle, vertical | 21 - 60° |
| Lens viewing angle, horizontal | 38 - 104° |
| Pan speed | 90 °/sec |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Pan range | 0 - 355° |
| Tilt speed | 1.5 °/sec |
| Tilt angle range | 0 - 90° |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Video formats supported | H.265 |
| Video recording | Yes |
| Total megapixels | 8 MP |
| Supported video modes | 2160p |
| Bit rate | 128Kbps - 8192Kbps |
| Video compression formats | H.265 |
| Maximum Resolution | 3840 x 2160 pixels |
| Video streaming | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Frame rate | 25 fps |
| Number of illumination LEDs | 2 |
| Night vision distance | 30 m |
| LED type | IR/White |
| Infra-red wavelength | 850 nm |
| Night Vision | Yes |
| Maximum aperture number | 1.6 |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Fixed focal length | 2.8 mm |
