Basic event | Motion Detection, Camera Tampering Detection, Exception |
I code | IK10 |
International Protection (IP) code | IP67 |
Form factor | Dome |
Product colour | Black |
Housing material | Plastic |
Mounting Type | Ceiling/wall |
Power source type | DC, PoE |
Power consumption (max) | 5.4 W |
Intelligent Video Surveillance (IVS) system features | Region exiting detection |
Mirror | Yes |
Active tampering alarm | Yes |
IP address filtering | Yes |
PASSWORD PROTECTION | Yes |
Digest authentication | Yes |
HTTPS encryption | Yes |
Video motion detection | Yes |
Operating temperature (T-T) | -30 - 60 °C |
Management software | VIGI App, VIGI Security Manager, VIGI NVR |
Web-based management | Yes |
Reset button | Yes |
Height | 86 mm |
Width | 115 mm |
Depth | 115 mm |
Ethernet LAN | Yes |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Wi-Fi | No |
Ethernet interface type | Fast Ethernet |
Bluetooth | No |
Number of simultaneous live view channels | 3 channels |
Certification | CE, BSMI, VCCI, ONVIF |
Connectivity Technology | Wired |
Placement supported | Indoor & outdoor |

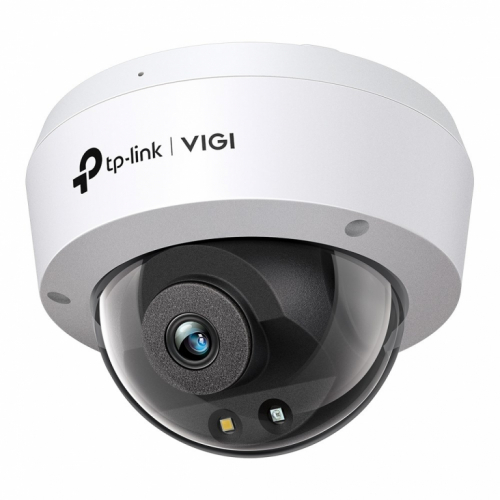

Type | IP security camera |
Day/night mode | Yes |
PACKAGE WEIGHT | 470 g |
Package height | 120 mm |
Package width | 153 mm |
Package depth | 193 mm |
Number of Cameras | 1 |
Mounting Kit | Yes |
Built-in microphone | Yes |
Maximum memory card size | 256 GB |
Built-in HDD | No |
COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
Card reader integrated | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Tilt angle range | 0 - 85° |
Angle of rotation | 360° |
Pan range | 0 - 360° |
Camera pan control | Yes |
Lens viewing angle, vertical | 42.9° |
Lens viewing angle, horizontal | 79.7° |
Camera tilt control | Yes |
Lens viewing angle, diagonal | 93.9° |
Minimum illumination | 0.005 lx |
Sensor type | CMOS |
Optical sensor size | 25.4 / 3 mm (1 / 3") |
Maximum Resolution | 2560 x 1440 pixels |
Supported graphics resolutions | 352 x 288 |
Back Light Compensation (BLC) | Yes |
Total megapixels | 4 MP |
Highlight Compensation (HLC) | Yes |
Image quality adjustment | Brightness |
Digital Wide Dynamic Range (DWDR) | Yes |
Video compression formats | H.265 |
Noise reduction technology | 3D noise reduction |
Frame rate | 30 fps |
Bit rate | 64 Kbps - 4 Mbps |
Privacy masking | Yes |
Video streaming | Yes |
Number of illumination LEDs | 1 |
Infra-red wavelength | 850 nm |
Night Vision | Yes |
LED type | IR |
Night vision distance | 30 m |
Lens diameter | 4 mm |
Number of lenses | 1 |
Compliance certificates | CE |
