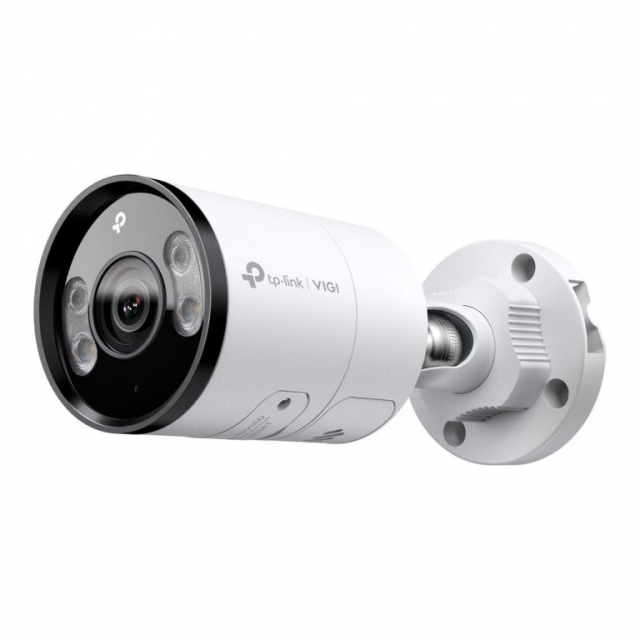

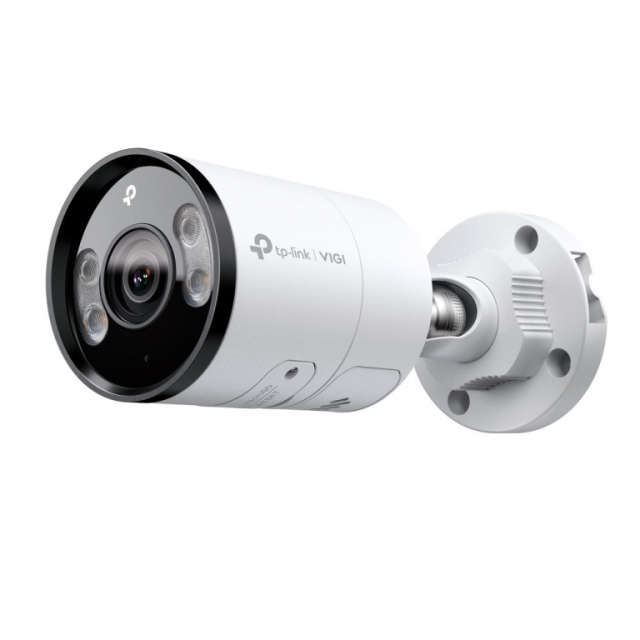

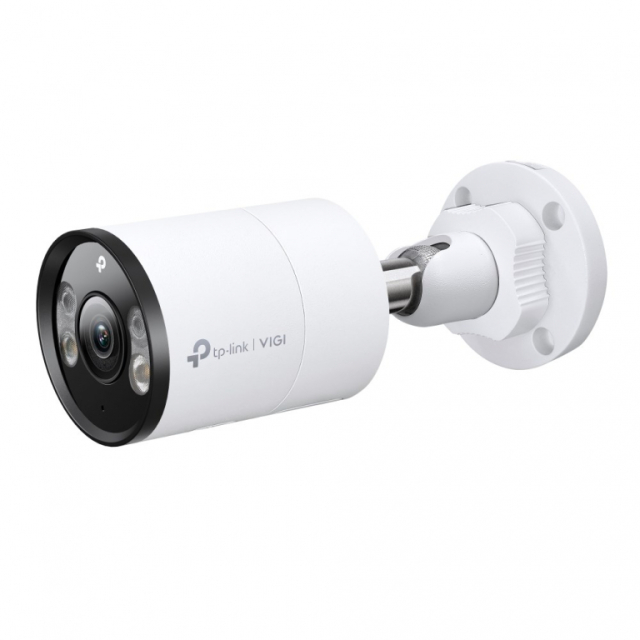

Product colour | White |
Form factor | Bullet |
International Protection (IP) code | IP67 |
Mounting Type | Wall |
Housing material | Metal |
Power source type | DC, PoE |
DC output voltage | 12 |
Power consumption (max) | 10.7 W |
Digest authentication | Yes |
Privacy protection | Yes |
IP address filtering | Yes |
PASSWORD PROTECTION | Yes |
Operating temperature (T-T) | -30 - 60 °C |
Storage relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -40 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Web browser | Yes |
Height | 74 mm |
Length | 74 mm |
Width | 184 mm |
Weight | 525 g |
Bluetooth | No |
Wi-Fi | No |
Ethernet LAN | Yes |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Ethernet interface type | Fast Ethernet |
Certification | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
Built-in light | Yes |
Connectivity Technology | Wired |
Wide Dynamic Range (WDR) | Yes |
Placement supported | Outdoor |
Dynamic range | 120 dB |
Day/night mode | Yes |
Type | IP security camera |
Infrared (IR) cut-off filter | Yes |
Number of Cameras | 1 |
Audio system | 2-way |
Built-in microphone | Yes |
Audio formats supported | G.711 |
Sample Rate | 8 kHz |
Built-in speaker(s) | Yes |
Signal-to-Noise Ratio (SNR) | 52 dB |
COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
Maximum memory card size | 512 GB |
Card reader integrated | Yes |
Built-in HDD | No |
DC-in jack | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Lens viewing angle, horizontal | 111.4° |
Lens viewing angle, diagonal | 134° |
Lens viewing angle, vertical | 58.8° |
Number of Privacy masking areas | 4 |
Tilt angle range | 0 - 90° |
Minimum illumination | 0.005 lx |
Camera shutter speed | 1/3 to 1/10000 |
Angle of rotation | 360° |
Pan range | 0 - 360° |
Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Sensor type | CMOS |
Progressive Scan | Yes |
Maximum Resolution | 2880 x 1620 pixels |
Noise reduction | Yes |
Back Light Compensation (BLC) | Yes |
Bit rate | 6 Mbps |
Highlight Compensation (HLC) | Yes |
Total megapixels | 5 MP |
Bit rate control | Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Image quality adjustment | Brightness |
Region of Interest (ROI) encoding | Yes |
Video compression formats | H.265 |
Smart IR | Yes |
Frame rate | 30 fps |
Noise reduction technology | 3D noise reduction |
Supported graphics resolutions | 2048 x 1280 |
Privacy masking | Yes |
Infra-red wavelength | 850 nm |
Number of illumination LEDs | 4 |
Night vision distance | 30 m |
Night Vision | Yes |
LED type | IR/White |
Recognize distance | 13 m |
Detect distance | 64 m |
Identify distance | 6 m |
Observe distance | 27 m |
Fixed focal length | 2.8 mm |
Maximum aperture number | 1.6 |
Number of lenses | 1 |
