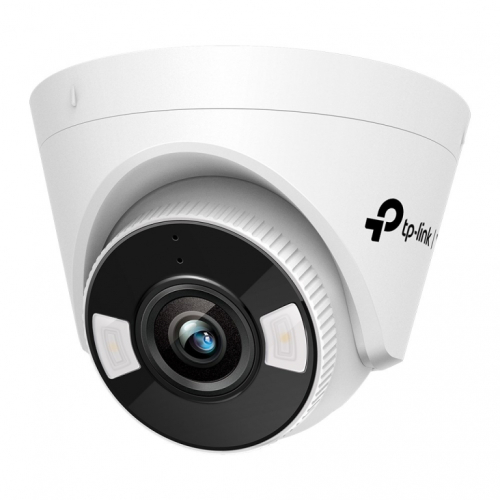

Form factor | Turret |
Housing material | Plastic |
Mounting Type | Ceiling |
Product colour | White |
Power consumption (max) | 9 W |
DC output voltage | 12 |
Power consumption (Power over Ethernet (PoE)) | 10.5 W |
Power source type | DC |
IP address filtering | Yes |
Video motion detection | Yes |
PASSWORD PROTECTION | Yes |
Active tampering alarm | Yes |
HTTPS encryption | Yes |
Digest authentication | Yes |
Storage relative humidity (H-H) | 0 - 95% |
Operating temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -40 - 60 °C |
Reset button | Yes |
Web browser | Yes |
Cloud-managed | Yes |
Weight | 240 g |
Diameter | 12.3 cm |
Height | 84 mm |
Wi-Fi | No |
Ethernet LAN | Yes |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Ethernet interface type | Fast Ethernet |
Live view | Yes |
Client interoperability | VIGI App, VIGI Security Manager, Web UI |
Number of simultaneous live view channels | 6 channels |
Bluetooth | No |
Certification | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
Wide Dynamic Range (WDR) | Yes |
Built-in light | Yes |
Dynamic range | 120 dB |
Type | IP security camera |
Day/night mode | Yes |
Infrared (IR) cut-off filter | Yes |
Placement supported | Indoor |
Connectivity Technology | Wired |
PACKAGE WEIGHT | 400 g |
Package Type | Box |
Number of Cameras | 1 |
Sample Rate | 8 kHz |
Built-in speaker(s) | Yes |
Voice Codecs | G.711 |
Audio system | 2-way |
Signal-to-Noise Ratio (SNR) | 52 dB |
Built-in microphone | Yes |
Bit rate range | 0 - 64 Kbit/s |
Built-in HDD | No |
Card reader integrated | Yes |
COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
Maximum memory card size | 512 GB |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Pan range | 0 - 360° |
Minimum illumination | 0.005 lx |
Camera shutter speed | 1/3 - 1/10000 s |
Lens viewing angle, diagonal | 128° |
Lens viewing angle, vertical | 57° |
Lens viewing angle, horizontal | 109° |
Tilt angle range | 0 - 85° |
Number of Privacy masking areas | 4 |
Progressive Scan | Yes |
Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Sensor type | CMOS |
Number of sensors | 1 |
Highlight Compensation (HLC) | Yes |
Supported video modes | 720p |
Image quality adjustment | Contrast |
Back Light Compensation (BLC) | Yes |
Supported graphics resolutions | 2304 x 1296 |
Video formats supported | H.265+ |
Smart IR | Yes |
Bit rate | 64 Kbps - 6 Mbps |
Frame rate | 30 fps |
Region of Interest (ROI) encoding | Yes |
Noise reduction | Yes |
Bit rate control | Variable Bit Rate (VBR) |
Maximum Resolution | 2880 x 1620 pixels |
Video streaming | Yes |
Noise reduction technology | 3D noise reduction |
Video recording | Yes |
Total megapixels | 5 MP |
LED type | IR |
Infra-red wavelength | 850 nm |
Night vision distance | 30 m |
Number of illumination LEDs | 2 |
Night Vision | Yes |
Observe distance | 27 m |
Recognize distance | 13 m |
Identify distance | 6 m |
Number of lenses | 1 |
Fixed focal length | 2.8 mm |
Detect distance | 64 m |
Maximum aperture number | 1.6 |
Warnings | The product contains electronic components; do not dispose of with the normal household waste. |
Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
