International Protection (IP) code | IP67 |
Housing material | Metal |

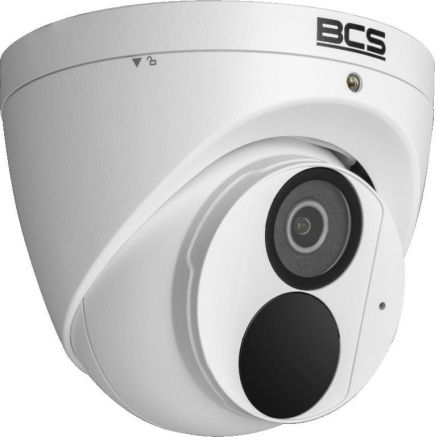

Form factor | Turret |
Product colour | White |
Mounting Type | Ceiling |
DC output voltage | 12 |
Power consumption (Power over Ethernet (PoE)) | 12.5 W |
Power consumption (max) | 11.5 W |
Power source type | DC, PoE |
PASSWORD PROTECTION | Yes |
IP address filtering | Yes |
HTTPS encryption | Yes |
Human and vehicle targets classification | Yes |
Video motion detection | Yes |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -40 - 60 °C |
Storage relative humidity (H-H) | 0 - 95% |
Operating temperature (T-T) | -30 - 60 °C |
Reset button | Yes |
Weight | 480 g |
Depth | 111 mm |
Height | 83.7 mm |
Width | 111 mm |
Bluetooth | No |
Live view | Yes |
Wi-Fi | No |
Ethernet LAN | Yes |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Connectivity Technology | Wired |
Dynamic range | 120 dB |
Type | IP security camera |
Wide Dynamic Range (WDR) | Yes |
Built-in light | Yes |
Day/night mode | Yes |
Placement supported | Outdoor |
Infrared (IR) cut-off filter | Yes |
Mounting Kit | Yes |
Number of Cameras | 1 |
Waterproof connector | Yes |
Audio formats supported | G.711 |
Audio system | 2-way |
Built-in speaker(s) | Yes |
Built-in microphone | Yes |
Signal-to-Noise Ratio (SNR) | 52 dB |
Sample Rate | 8 kHz |
Maximum memory card size | 512 GB |
Built-in HDD | No |
COMPATIBLE MEMORY CARDS | MicroSD (TransFlash) |
Card reader integrated | Yes |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Minimum illumination | 0.005 lx |
Tilt angle range | 0 - 85° |
Camera shutter speed | 1/3 to 1/10000 |
Lens viewing angle, diagonal | 109.6° |
Angle of rotation | 360° |
Lens viewing angle, vertical | 46.1° |
Pan range | 0 - 360° |
Lens viewing angle, horizontal | 91.5° |
Number of Privacy masking areas | 4 |
Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Sensor type | CMOS |
Progressive Scan | Yes |
Video compression formats | H.265+ |
Image quality adjustment | Sharpness |
Maximum Resolution | 3840 x 2160 pixels |
Smart IR | Yes |
Noise reduction technology | 3D noise reduction |
Supported graphics resolutions | 1280 x 720 (HD 720) |
Region of Interest (ROI) encoding | Yes |
Total megapixels | 8 MP |
Frame rate | 25 fps |
Noise reduction | Yes |
Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
Video streaming | Yes |
Privacy masking | Yes |
Highlight Compensation (HLC) | Yes |
Back Light Compensation (BLC) | Yes |
Night vision distance | 30 m |
Infra-red wavelength | 850 nm |
LED type | IR/White |
Number of illumination LEDs | 4 |
Night Vision | Yes |
Number of lenses | 1 |
Recognize distance | 21 m |
Detect distance | 107 m |
Identify distance | 11 m |
Observe distance | 44 m |
Maximum aperture number | 1.6 |
Fixed focal length | 4 mm |
