Built-in processor | Yes |
Certification | CE EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 CE LVD: EN 62368-1:2014 2023-09-26 |
Rack capacity | 1U |
Product colour | White |
Rack mounting | Yes |
Output voltage | 12 V |
Output current | 1.5 A |
Operating relative humidity (H-H) | 10 - 93% |
Operating temperature (T-T) | -10 - 55 °C |
PACKAGE WEIGHT | 1.42 kg |
Weight | 480 g |
Package width | 96 mm |
Package depth | 364 mm |
Package height | 261 mm |
Width | 204.6 mm |
Height | 45.6 mm |
Depth | 206.4 mm |
Mobile operating systems supported | iOS |
Browser supported | Chrome, IE9 lub wyższy, Firefox, Safari, Edge |
Recording Modes | Motion detection, manual recording, smart recording, alarm |
Input bandwidth | 80 Mbit/s |
Video input channels | 4 channels |
Audio codecs | PCM; G711A; G711U; G726 |
Operating system installed | Embedded LINUX |
Playback Modes | Pause, Play, Stop |
Video codecs | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
Video recording modes | 720p |
Output bandwidth | 60 Mbit/s |

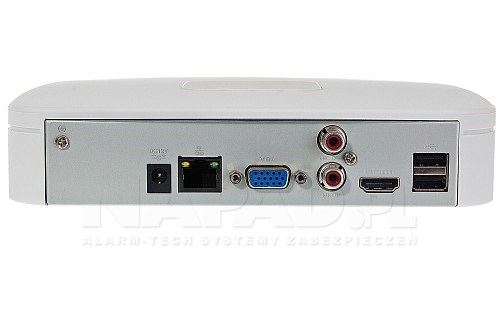

HDMI ports quantity | 1 |
DC-in jack | Yes |
Ethernet LAN data rates | 10 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 2 |
VGA (D-Sub) output ports | 1 |
HDMI output | Yes |
Audio RCA outputs | 1 |
Audio RCA inputs | 1 |
HDD interface | SATA |
Maximum storage capacity | 20 TB |
Number of HDDs installed | 1 |
