Sustainability certificates | CE |
Rack mounting | Yes |
Product colour | Black |
Rack capacity | 1U |
Total Power over Ethernet (PoE) budget | 50 W |
Power consumption (typical) | 10 W |
Output voltage | 48 V |
Operating temperature (T-T) | -10 - 55 °C |
Operating relative humidity (H-H) | 10 - 90% |
Weight | 1 kg |
Height | 48 mm |
Width | 320 mm |
Depth | 240 mm |
Supported resolutions | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Maximum Frame Rate | 30 fps |
Audio formats supported | G.711 μ-law |
Face detection | Yes |
Video formats supported | H.265+ |
Number of simultaneously playbacked channels | 4 channels |
Input bandwidth | 40 Mbit/s |
Video input channels | 4 channels |
Maximum Resolution | 3840 x 2160 pixels |
Output bandwidth | 80 Mbit/s |
Wi-Fi | No |
Number of HDDs supported | 1 |
Maximum storage capacity | 16 TB |
HDD interface | SATA |
Power Over Ethernet (PoE) | Yes |

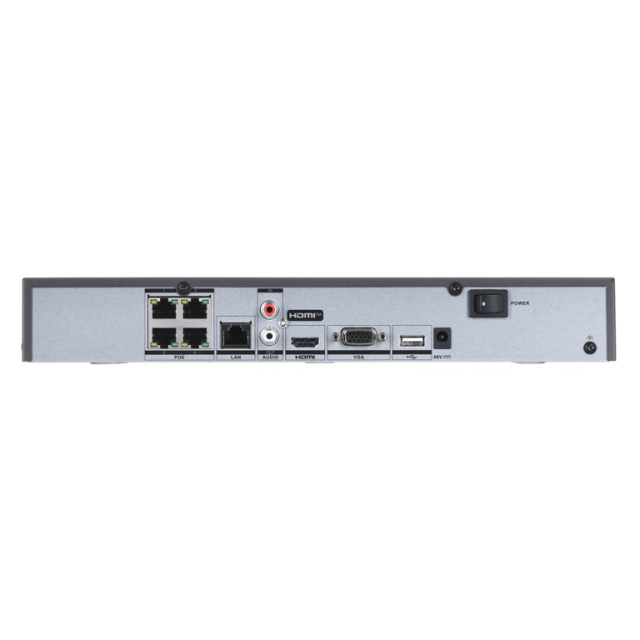

HDMI ports quantity | 1 |
USB 2.0 ports quantity | 2 |
Supported network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
Ethernet LAN (RJ-45) ports | 5 |
HDMI output | Yes |
Audio RCA outputs | 1 |
Networking standards | IEEE 802.3at |
Ethernet LAN data rates | 100 |
Internal SATA ports quantity | 1 |
Audio RCA inputs | 1 |
Power over Ethernet (PoE) ports quantity | 4 |
VGA (D-Sub) output ports | 1 |
