Channels 16 | Desktop/pedestal | Rack | CPU Industrial-grade processor | SATA | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 1xRS232 | 2xUSB 2.0 | 1xRJ45 | 4xAlarm In | 2xAlarm Out | Power supply requirements 100–240 VAC, 50/60 Hz | Dim. 375.0 × 327.9 × 53.0 mm | Temp. range –10 °C to +55 °C
Description | > Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.
|
Vendor Homepage | www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/2HDD/NVR4216-16P-4KS3 |

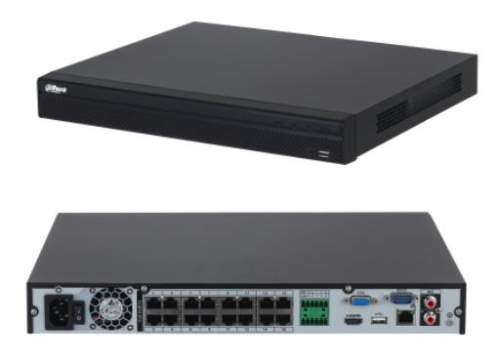

Model | DHI-NVR4216-16P-4KS3 |
Number of channels | 16 |
Desktop/pedestal | Yes |
Rack | Yes |
CPU | Industrial-grade processor |
SATA | Yes |
15pin D-sub | 1 |
Alarm In | 4 |
Alarm Out | 2 |
Audio-In | 1 |
Audio-Out | 1 |
HDMI | 1 |
RJ45 | 1 |
RS232 | 1 |
USB 2.0 | 2 |
PoE ports | 16 |
Power supply requirements | 100–240 VAC, 50/60 Hz |
Dimensions | 375.0 × 327.9 × 53.0 mm |
Operating temperature range | –10 °C to +55 °C |
Unit Net Weight | 2.6 kg |
Unit Gross Weight | 3.8 kg |
CnCode | 85219000 |
Full Description Line | Channels 16|Desktop/pedestal|Rack|CPU Industrial-grade processor|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRS232|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 100–240 VAC, 50/60 Hz|Dim. 375.0 × 327.9 × 53.0 mm|Temp. range –10 °C to +55 °C |
Category Code | NVR |
