Channels 4 | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 5xRJ45 | Power supply requirements 53 V DC, 1.22 A | Dim. 204.6 mm × 206.4 mm × 45.6 mm | Temp. range –10 °C to +55 °C
Description | NVR2104-P-4KS3

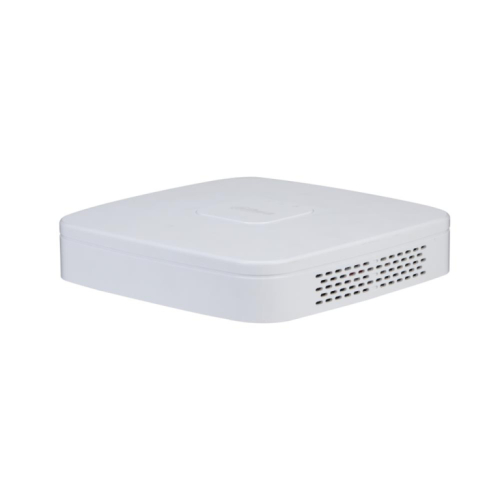

4CH Smart 1U 4PoE 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 6 × 1080p@30 fps.
> Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports perimeter protection and SMD Plus.
> Supports one-click arming and disarming.
|
Vendor Homepage | www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2104-P-4KS3 |
Model | NVR2104-P-4KS3 |
Number of channels | 4 |
Number of HDD | 1 |
15pin D-sub | 1 |
Audio-In | 1 |
Audio-Out | 1 |
HDMI | 1 |
RJ45 | 5 |
USB 2.0 | 2 |
PoE ports | 4 |
Power supply requirements | 53 V DC, 1.22 A |
Dimensions | 204.6 mm × 206.4 mm × 45.6 mm |
Operating temperature range | –10 °C to +55 °C |
Unit Net Weight | 0.48 kg |
Unit Gross Weight | 1.42 kg |
Full Description Line | Channels 4|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|5xRJ45|Power supply requirements 53 V DC, 1.22 A|Dim. 204.6 mm × 206.4 mm × 45.6 mm|Temp. range –10 °C to +55 °C |
Category Code | NVR |
