Channels 8 | Drives/bays 2 | Rack 1U | CPU Dual-core embedded processor | SATA | Integrated LAN 10/100 | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xTV-Out | 9xRJ45 | 1xRS-485 | 8xAlarm In | 3xAlarm Out | Power supply requirements DC 12V/5A | Power consumption 20 Watts | Dim. 375.0 × 329.4 x 53.0 mm | Temp. range –10 °C to +55 °C | Colour Black
Description | NVR5208-8P-EI

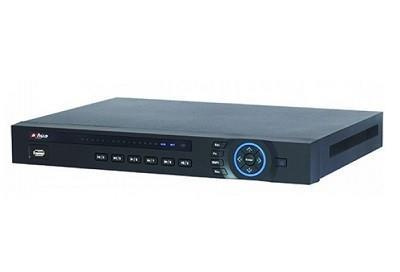

NET VIDEO RECORDER 8CH 8POE/ NVR5208-8P-EI DAHUA
8 Channels 1U 8PoE 2HDDs WizSense Network Video Recorder
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
> Max. decoding capability: 32 × 1080p@30 fps or 8 × 8MP@30 fps.
> Max. 384 Mbps incoming/recording/outgoing bandwidth.
> Support AcuPick with Max. 16-Channel.
> Support N+M cluster.
> AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
> AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
> Security baseline 2.3. |
Vendor Homepage | www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/2HDD/NVR5208-8P-EI |
Number of channels | 8 |
Number of drives/bays | 2 |
Rack 1U | Yes |
CPU | Dual-core embedded processor |
SATA | Yes |
Integrated LAN | 10/100 |
15pin D-sub | 1 |
Alarm In | 8 |
Alarm Out | 3 |
Audio-In | 1 |
Audio-Out | 1 |
HDMI | 1 |
RJ45 | 9 |
RS-485 | 1 |
TV-Out | 1 |
USB 2.0 | 2 |
Power supply requirements | DC 12V/5A |
Power consumption | 20 Watts |
Dimensions | 375.0 × 329.4 x 53.0 mm |
Operating temperature range | –10 °C to +55 °C |
Colour | Black |
Unit Net Weight | 2.57 kg |
Unit Gross Weight | 3.8 kg |
Unit Box Width | 0.14 |
Unit Box Length | 0.45 |
Unit Box Height | 0.42 |
Full Description Line | Channels 8|Drives/bays 2|Rack 1U|CPU Dual-core embedded processor|SATA|Integrated LAN 10/100|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xTV-Out|9xRJ45|1xRS-485|8xAlarm In|3xAlarm Out|Power supply requirements DC 12V/5A|Power consumption 20 Watts|Dim. 375.0 × 329.4 x 53.0 mm|Temp. range –10 °C to +55 °C|Colour Black |
Category Code | NVR |
