Channels 8 | Drives/bays 1 | Desktop/pedestal | Rack | CPU Industrial-grade processor | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 204.6 × 206.4 × 45.6mm | Temp. range –10 °C to +55 °C | Colour White

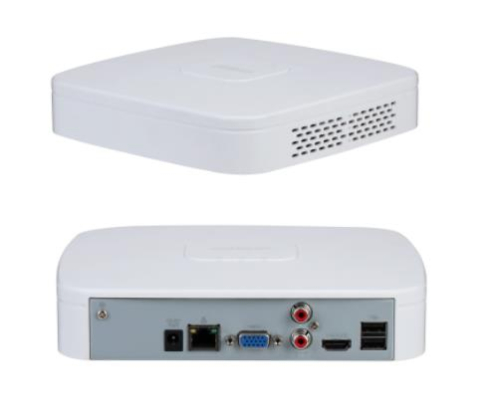

Description | 8CH Smart 1U 1HDD WizSense Network Video Recorder
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
> Access, storage or forwarding at 80 Mbps.
> Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding.
> AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
> AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
> Connected to the third-party network cameras.
> Security baseline 2.3.
|
Vendor Homepage | www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4108-EI |
Model | NVR4108-EI |
Number of channels | 8 |
Number of drives/bays | 1 |
Desktop/pedestal | Yes |
Rack | Yes |
CPU | Industrial-grade processor |
15pin D-sub | 1 |
Audio-In | 1 |
Audio-Out | 1 |
HDMI | 1 |
RJ45 | 1 |
USB 2.0 | 2 |
Power supply requirements | 12 VDC, 2 A |
Power consumption | 10 Watts |
Dimensions | 204.6 × 206.4 × 45.6mm |
Operating temperature range | –10 °C to +55 °C |
Colour | White |
Unit Net Weight | 0.45 kg |
Unit Gross Weight | 1.07 kg |
Unit Box Width | 0.095 |
Unit Box Length | 0.36 |
Unit Box Height | 0.26 |
Full Description Line | Channels 8|Drives/bays 1|Desktop/pedestal|Rack|CPU Industrial-grade processor|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 2 A|Power consumption 10 Watts|Dim. 204.6 × 206.4 × 45.6mm|Temp. range –10 °C to +55 °C|Colour White |
Category Code | NVR |
