Channels 8 | Desktop/pedestal | Rack | CPU Industrial-grade | SATA | Integrated LAN Gigabit | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 260.0 × 232.5 × 47.6 mm | Temp. range –10 °C to +55 °C | Colour Black

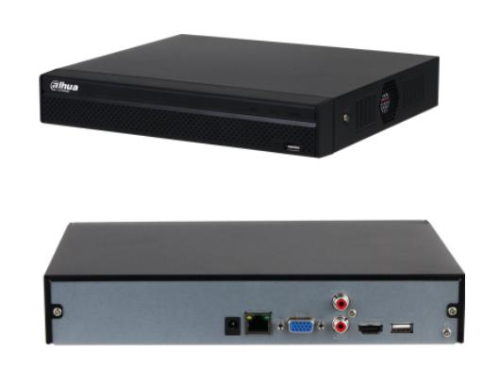

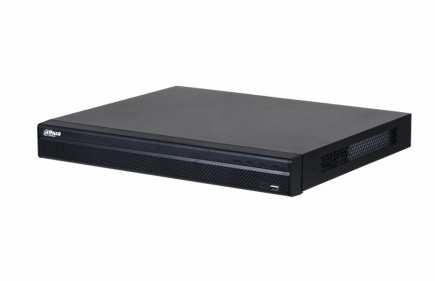

Description | 8CH Compact 1U 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps.
> Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.
|
Vendor Homepage | www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/1HDD/NVR4108HS-4KS3 |
Model | DHI-NVR4108HS-4KS3 |
Number of channels | 8 |
Desktop/pedestal | Yes |
Rack | Yes |
CPU | Industrial-grade |
SATA | Yes |
Integrated LAN | Gigabit |
15pin D-sub | 1 |
Audio-In | 1 |
Audio-Out | 1 |
HDMI | 1 |
RJ45 | 1 |
USB 2.0 | 2 |
Power supply requirements | 12 VDC, 2 A |
Power consumption | 10 Watts |
Dimensions | 260.0 × 232.5 × 47.6 mm |
Operating temperature range | –10 °C to +55 °C |
Colour | Black |
Unit Net Weight | 0.81 kg |
Unit Gross Weight | 1.43 kg |
Unit Box Width | 0.085 |
Unit Box Length | 0.335 |
Unit Box Height | 0.315 |
Full Description Line | Channels 8|Desktop/pedestal|Rack|CPU Industrial-grade|SATA|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 2 A|Power consumption 10 Watts|Dim. 260.0 × 232.5 × 47.6 mm|Temp. range –10 °C to +55 °C|Colour Black |
Category Code | NVR |
