Processor architecture | ARM Cortex-A53 |
Operating system installed | RutOS |
Built-in processor | Yes |
INTERNAL MEMORY | 512 MB |
Processor manufacturer | MediaTek |
Internal memory type | DDR3 |
Flash Memory | 512 MB |
Processor frequency | 1300 MHz |

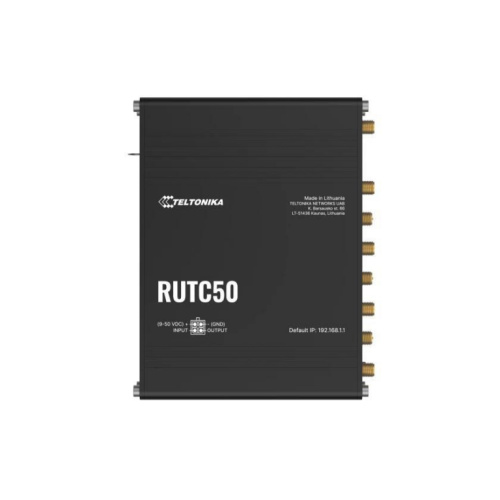

Product Type | Industrial router |
LED indicators | Yes |
Product colour | Black |
Power plug type | Type E |
Power consumption (typical) | 4.5 W |
Power source type | DC |
DDoS protection | Yes |
IP address filtering | Yes |
Firewall | Yes |
Firewall security | Port forward, traffic rules, custom rules |
DMZ support | Yes |
Network address translation (NAT) | Yes |
MAC address filtering | Yes |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | -40 - 75 °C |
MU-MIMO technology | Yes |
Quality of Service (QoS) support | Yes |
DESPITE | Yes |
Reset button | Yes |
Wake-on-LAN ready | Yes |
Web-based management | No |
Width | 130.4 mm |
Depth | 103.4 mm |
Height | 42.6 mm |
Weight | 452 g |
Cabling technology | 10/100/1000Base-T(X) |
Auto MDI/MDI-X | Yes |
Static route | Yes |
Ethernet LAN | Yes |
Ethernet LAN interface type | Gigabit Ethernet |
Dynamic DNS (DDNS) | Yes |
Port forwarding | Yes |
Networking standards | IEEE 802.3u |
Ethernet LAN data rates | 10 |
Wi-Fi standards | 802.11g |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
WLAN data transfer rate (max) | 2402 Mbit/s |
Universal Plug and Play (UPnP) | Yes |
Routing protocols | BGP |
VoIP Protocols | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
DHCP Server | Yes |
DHCP client | Yes |
USB Port | Yes |
USB 2.0 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 5 |
Antenna design | External |
Antenna type | 4x4 |
Antenna Connector Type | SMA |
Ethernet WAN | Yes |
DSL WAN | No |
SIM card slot | Yes |
3G/4G USB modem compatibility | No |
Dual SIM support | Yes |
Short Message Service (SMS) | Yes |
5G bands supported | 6000 MHz |
4G standard | LTE |
Mobile network generation | 5G |
5G standard | Sub6 SA/NSA |
4G LTE category | 20 |
