| Processor model | Qualcomm Atheros |
| Built-in processor | Yes |
| Plug and Play | Yes |
| LED indicators | LAN, Power, WAN, WLAN |
| Product colour | Black |
| On/off switch | Yes |

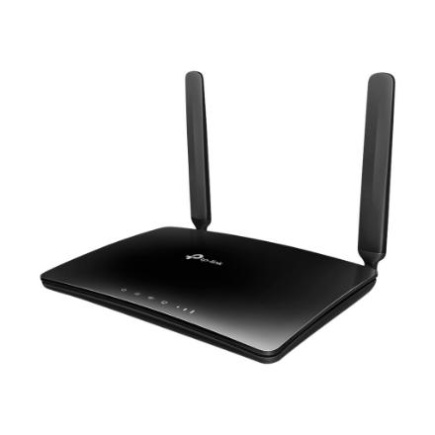

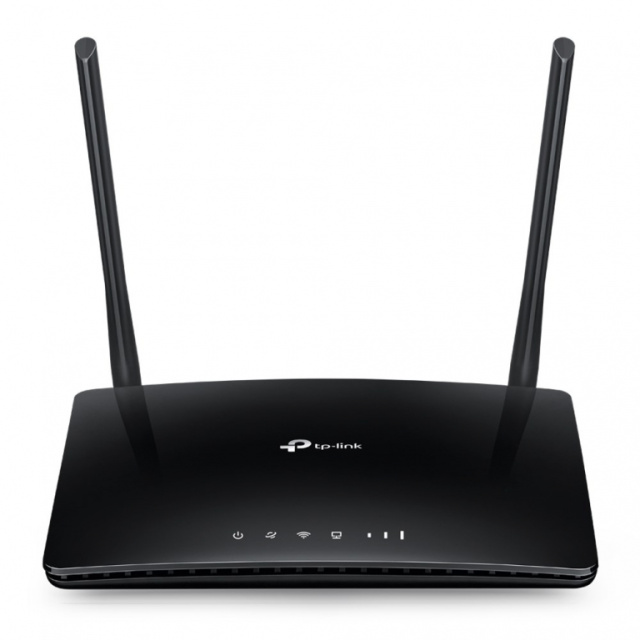

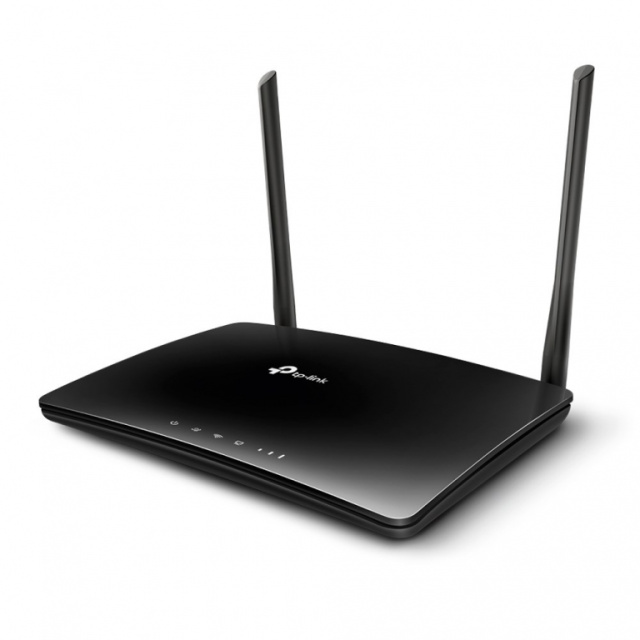

| Product Type | Tabletop router |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
| Security algorithms | WPA-PSK |
| Stateful Packet Inspection (SPI) | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| DoS attack prevention | Yes |
| Guest access | Yes |
| DMZ support | Yes |
| Firewall | Yes |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Depth | 145 mm |
| Width | 202 mm |
| Height | 34 mm |
| VPN support | PPTP VPN, IPSec VPN, OpenVPN |
| Receiver sensitivity | 5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80: -60dBm
11n HT20: -71dBm
11n HT40: -70dBm
2.4G: 11g 54M: -73dBm
11n HT20: -73dBm
11n HT40: -67dBm |
| Ethernet LAN data rates | 100 Mbit/s |
| Networking standards | IEEE 802.11a |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| VPN tunnels quantity | 10 |
| VPN Passthrough | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Windows operating systems supported | Windows 10 |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| CABLES INCLUDED | LAN (RJ-45) |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 433 Mbit/s |
| WLAN data transfer rate (max) | 733 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| DHCP client | Yes |
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
| DHCP Server | Yes |

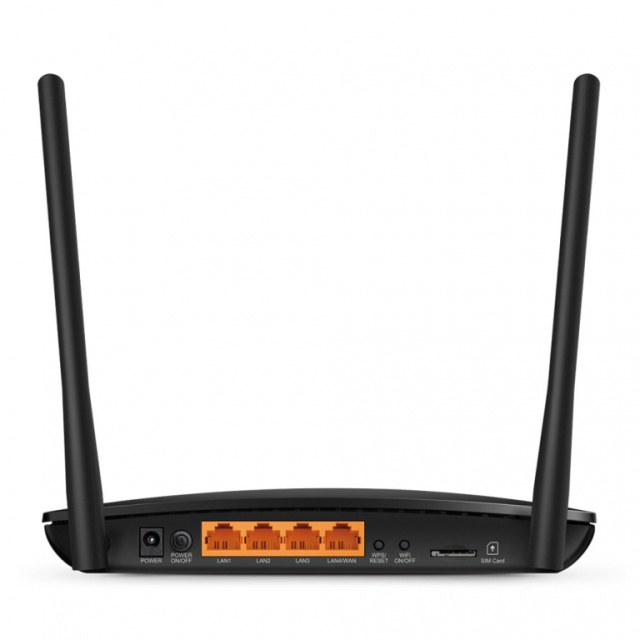

| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| USB Port | No |
| Memory card slot(s) | No |
| Antennas quantity | 2 |
| Antenna design | External |
| Transmit power | 0 dBmW |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
| DSL WAN | No |
| Ethernet WAN | Yes |
| 3G/4G USB modem compatibility | No |
| 3G | Yes |
| 4G | Yes |
| 3G bands supported | 900 |
| 4G bands supported | 1800 |
| 3G standards | UMTS |
| Mobile network generation | 4G |
| 4G standard | LTE |
| Warnings | Do not open the appliance housing - risk of electric shock. |
