CPU AnnapurnaLabs Alpine AL324 ARM Cortex-A57 quad-core 1.7GHz processor | Drives/bays 9 | Desktop/pedestal | 3xUSB 3.2 | 2xSFP+ | Memory 4 GB | DDR4 | Power supply requirements External, 120 W, AC 100 to 240 V
| Description | QNAP TS-932PX

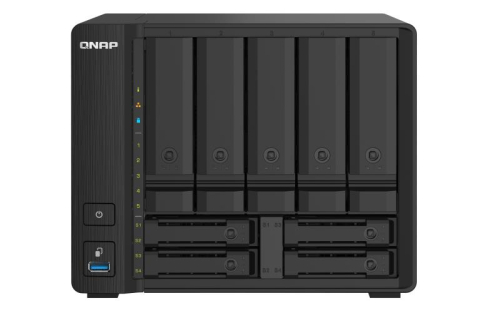

The quad-core 1.7GHz TS-932PX fits nine drive bays into the size of a 5-bay NAS. With five 3.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s bays, the TS-932PX provides the ability to create an HDD/SSD hybrid infrastructure to boost application performance. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-932PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing.
1
Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower bandwidth-demanding tasks and accelerate file sharing.
2
HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to optimize storage and bandwidth usage, while reducing backup times.
3
Snapshots record your system status, allowing you to protect files and data from accidental deletion and malware attacks.
4
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
5
Qtier auto-tiering technology and SSD caching enable constant storage optimization.
6
Increase the storage capacity of the TS-932PX with QNAP TR RAID expansion enclosures or TL JBOD. |
| Vendor Homepage | www.qnap.com/en/product/ts-932px |
| CPU | AnnapurnaLabs Alpine AL324 ARM Cortex-A57 quad-core 1.7GHz processor |
| Number of drives/bays | 9 |
| Supported drives | 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, 2.5-inch solid state drives |
| Desktop/pedestal | Yes |
| SFP + | 2 |
| USB 3.2 | 3 |
| Memory | 4 GB |
| Memory type | DDR4 |
| Flash memory (ROM) | 512 MB |
| HDD Tray | 5x 3.5-inch+ 4 x 2.5-inch SATA 6Gb/s |
| Power supply requirements | External, 120 W, AC 100 to 240 V |
| Dimensions | 182.7 × 224.6 × 224.1 mm |
| Unit Net Weight | 3.39 kg |
| Unit Gross Weight | 4.8 kg |
| Unit Box Width | 0.25 |
| Unit Box Length | 0.345 |
| Unit Box Height | 0.38 |
| Full Description Line | CPU AnnapurnaLabs Alpine AL324 ARM Cortex-A57 quad-core 1.7GHz processor|Drives/bays 9|Desktop/pedestal|3xUSB 3.2|2xSFP+|Memory 4 GB|DDR4|Power supply requirements External, 120 W, AC 100 to 240 V |
| Category Code | STS |
