storage medium | |
Supported storage drive interfaces | SATA, Serial Attached SCSI (SAS) |
supported storage drive sizes | 2.5,3.5" |
Eigenschaft | Nachhaltigkeitskonformität |
RAID Level | 0, 1, 5, 6, 10, F1, JBOD |
Supported file systems | BTRFS, Fett, HFS+, NTFS, exFAT, ext3, ext4 |
Total installed storage capacity | 0 TB |
Number of supported storage drives | 12 |
Supported storage drives | HDD & SSD |
processor | D-1567 |
processor manufacturer | Intel |
processor family | Intel® Xeon® |
processor clock speed | 2,1 GHz |
Processor Boost Frequency | 2,7 GHz |
number of CPU cores | 12 |
CPU configuration (max) | 1 |
Number of processors supported | 1 |
Storage | |
storage capacity | 16 GB |
Internal storage type | DDR4 |
Maximum supported RAM | 128 GB |
memory card slots | 4 |
Memory form factor | RDIMM |
network | |
Ethernet LAN data transfer rates | 10,100,1000,10000 Mbit/s |
Supported Ethernet LAN data rate (max.) | 10000 Mbit/s |
Copper Ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
connections and interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports | 2 |
Number of serial ports | 1 |
Number of Ethernet LAN ports (RJ-45) | 7 |
PCI Express x8 (Gen 3.x) connectors | 2 |
Design | |

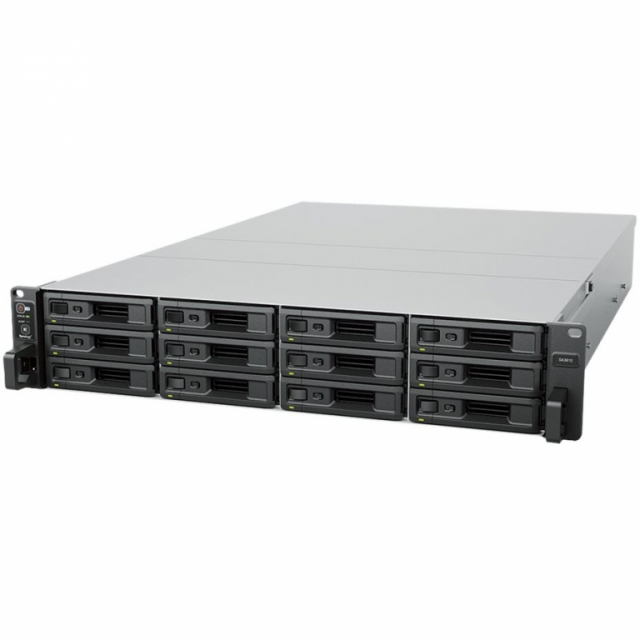

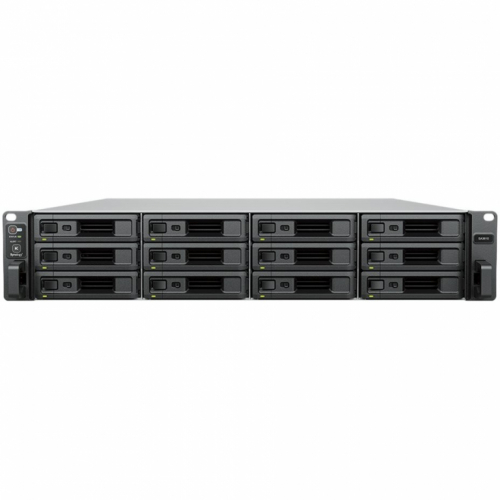

case type | Rack (2U) |
cooling | Aktiv |
Product color | Schwarz, Grau |
number of fans | 4 Lüfter |
fan diameter | 8 cm |
Services | |
Type | NAS |
device class | Kleines & Mittleres Unternehmen |
backup functions | Cloud, iSCSI LUN |
noise level | 49,8 dB |
management logs | SNMP |
Supported security algorithms | AES |
Supported browser | Google Chrome Firefox Microsoft Edge Safari |
Software | |
Installed operating system | DiskStation Manager |
energy | |
Power supply placement | Eingebaut |
capacity of the power supply unit | 550 W |
Number of power supply units | 1 |
Power consumption (standard operation) | 137,54 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 / 60 Hz |
weight and dimensions | |
broad | 482 mm |
depth | 724 mm |
height | 88 mm |
Weight | 14,5 kg |
scope of delivery | |
Supplied cables | AC |
Anzahl Stromkabel | 1 |
Processor specifics | |
Intel® Secure Key Technologieversion | 1,00 |
Intel® TSX-NI-Version | 1,00 |
sustainability | |
operating conditions | |
operating temperatur | 0 - 35 °C |
Operating relative humidity | 5 - 95% |
Storage temperature range | -20 - 60 °C |
humidity during storage | 5 - 95% |
Other functions | |
Konformitätsbescheinigungen | CE, RoHS |
certification | FCCCEBSMIVCCIRCMUKCAEACCCCKCUL |
